Laser Anti-Drone Systems

The Laser Anti-drone System is an advanced technological solution designed to detect, identify, track, and neutralize drone threats. Utilizing high-energy laser beams, this system provides precise strike capabilities, ensuring stable and efficient operation under various combat conditions. Below is an introduction to the core components and functions of the system:

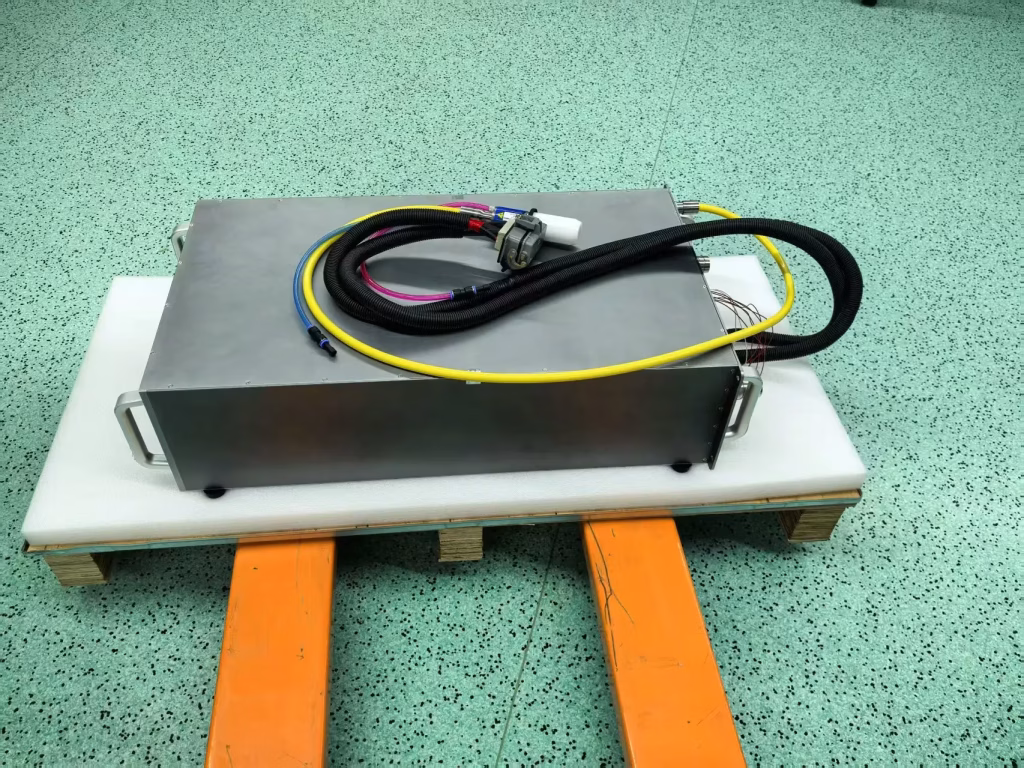

The fiber laser source is the heart of the Laser Anti-drone System. It employs a high-performance fiber laser that emits highly concentrated and high-energy laser beams. This laser source maintains stable and reliable operation under various combat conditions, delivering sustained high-efficiency strike capabilities. Known for its stability, efficiency, and longevity, the fiber laser is key to ensuring the overall performance of the system.

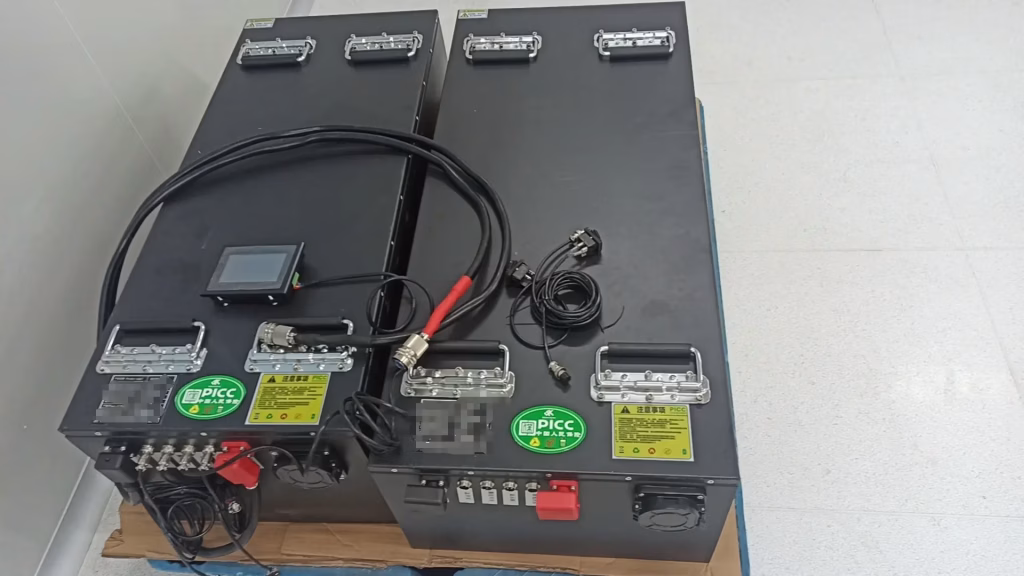

To ensure the system’s sustained operational capability in high-intensity combat environments, the power supply system adopts advanced power technology. This system provides a continuous and stable power supply not only to the fiber laser but also to other subsystems. With optimized power management, the system can operate efficiently during prolonged, high-intensity missions.

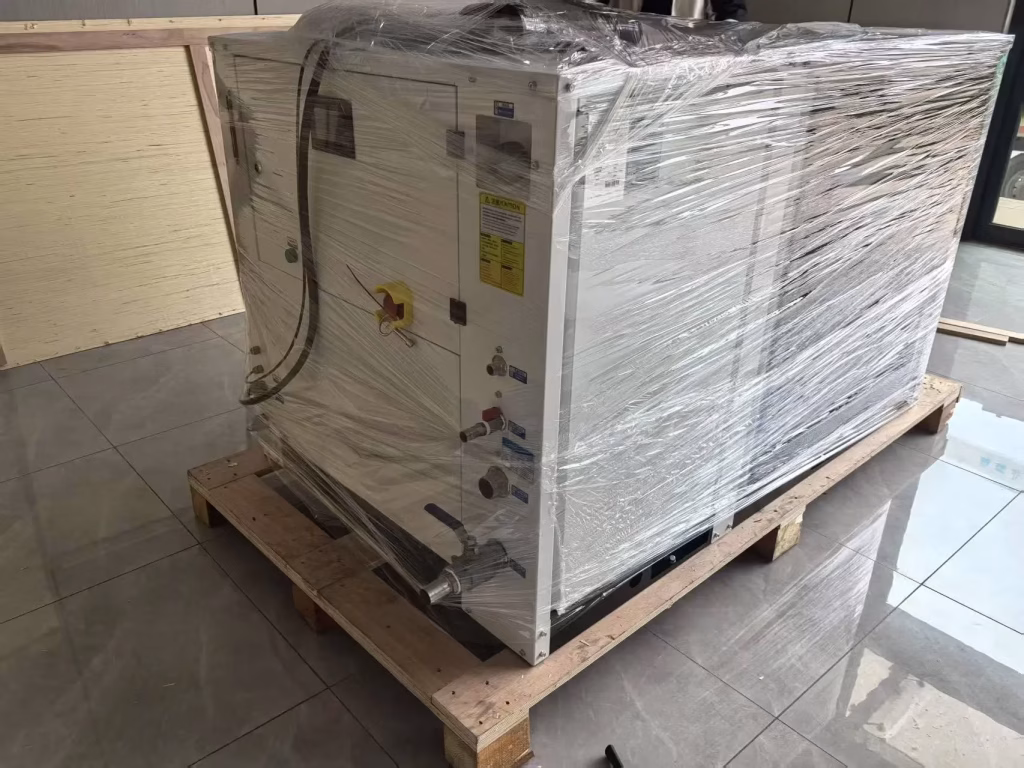

The efficient cooling system is a crucial component for ensuring the long-term operation of the Laser Anti-drone System. It rapidly dissipates heat, preventing the equipment from overheating during high-power operation, thus extending the system’s lifespan. The cooling system is designed for both efficiency and reliability, ensuring normal operation under various environmental conditions.

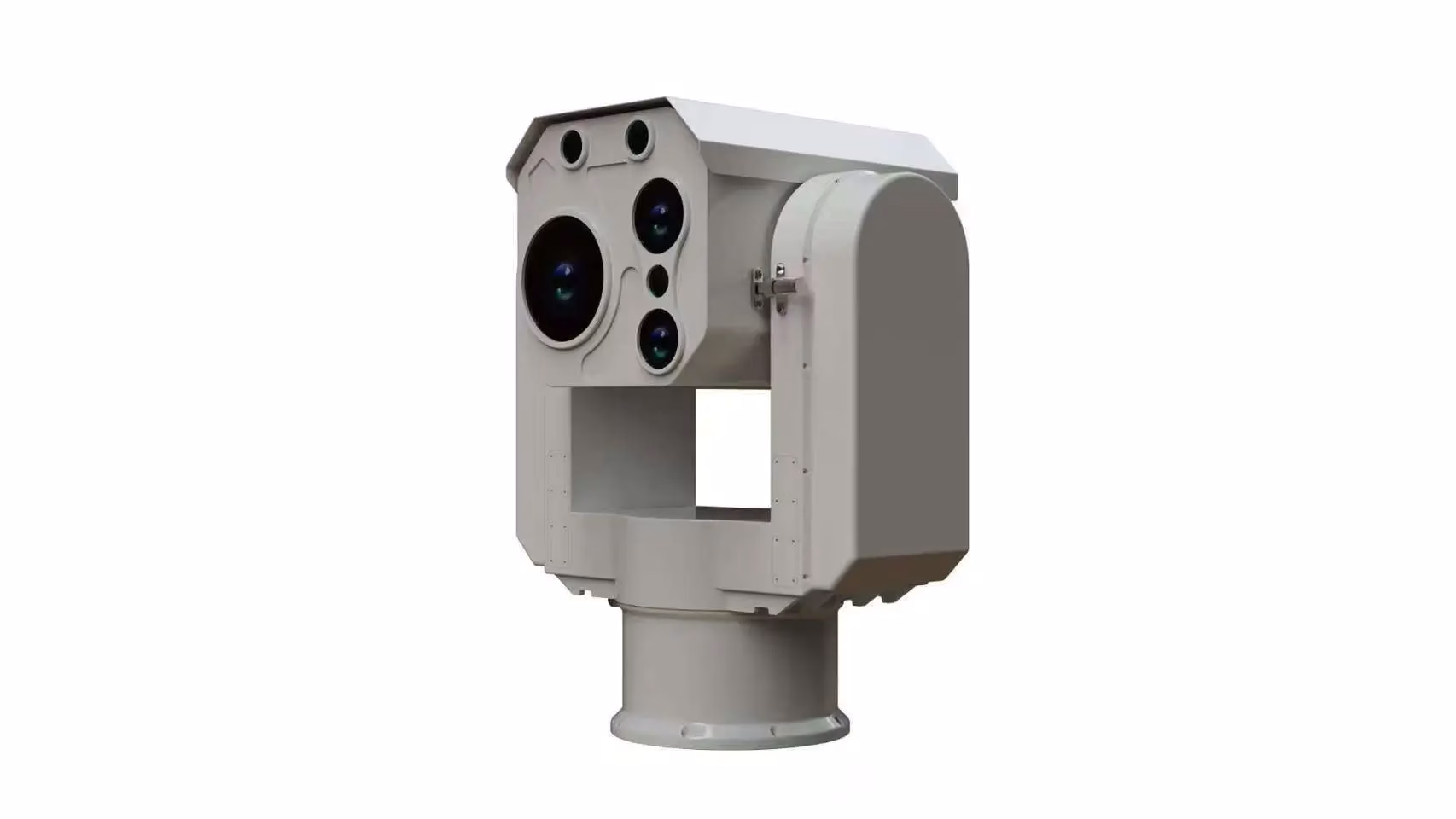

The Automatic Target Recognition and Tracking System (ATP System) integrates advanced sensor and radar technologies to detect, identify, and track aerial drone targets in real-time. The ATP system follows a detailed workflow to ensure quick response and precise strikes in emergency situations:

1. Acquisition: In this initial phase, the system performs judgment and identification of targets within uncertain areas. The acquisition process includes preliminary data guidance and initial line-of-sight (LOS) alignment, scanning within uncertain areas until the presence of the beacon spot is determined within the acquisition field. This establishes the foundation for subsequent tracking.
2. Tracking: Based on reliable acquisition, the tracking process is initiated. In spatial laser communication systems, tracking involves active optoelectronic tracking of the laser beam to overcome relative motion and platform vibration that affect the LOS. The aim of tracking is to stabilize the tracking LOS within an acceptable error range. High-precision tracking typically requires a combination of coarse and fine axis tracking.
3. Pointing: High-precision tracking is a necessary condition for near-diffraction-limited angle communication, but not a sufficient one; precise LOS pointing is also required. Pointing has two key aspects: first, maintaining precise coaxiality between the communication transmission LOS and tracking LOS during calibration, essential for near-diffraction-limited angle communication and micro-arc tracking; second, some spatial laser communication systems require the servo unit to correct deviations between the transmission LOS and reception LOS in advance, addressing one of the dynamic tracking error sources, thus requiring stringent alignment precision.

The Laser Anti-drone System is widely used in the following areas:

Military Base Defense: Protecting military facilities from reconnaissance or attacks by enemy drones.

Airport Security: Preventing drones from entering airport airspace, ensuring flight safety.

Public Event Security: Preventing drone interference or illegal activities during large public events or important meetings.

Critical Infrastructure Protection: Safeguarding critical infrastructures such as nuclear power plants and dams from potential drone threats.

By integrating a high-performance fiber laser source, advanced power supply system, efficient cooling system, and automatic target recognition and tracking system, the Laser Anti-drone System offers an efficient, precise, and reliable means to neutralize drone threats. This system operates efficiently under various environmental conditions, making it a vital component of modern anti-drone defense, providing robust protection for critical areas and assets.
