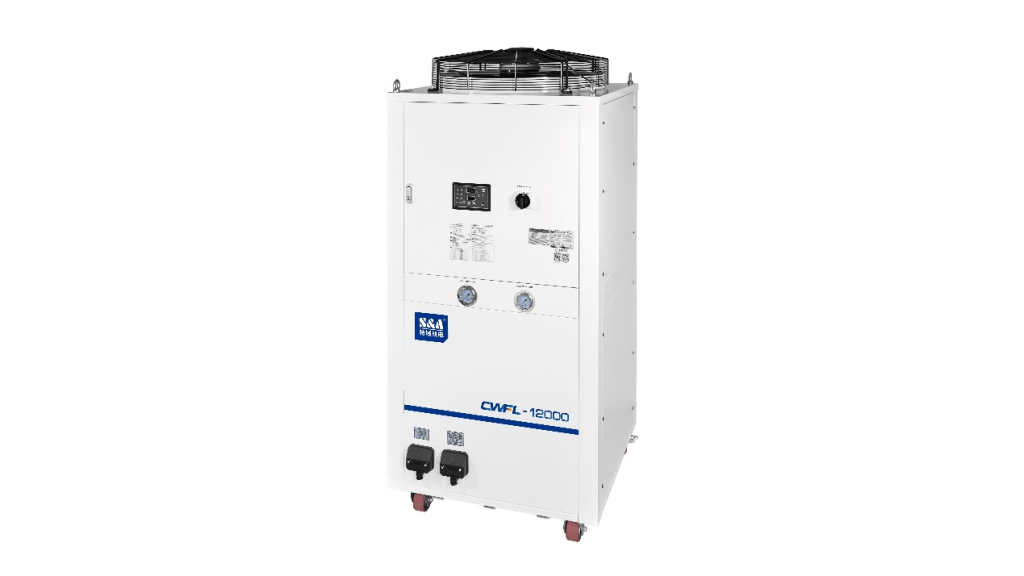

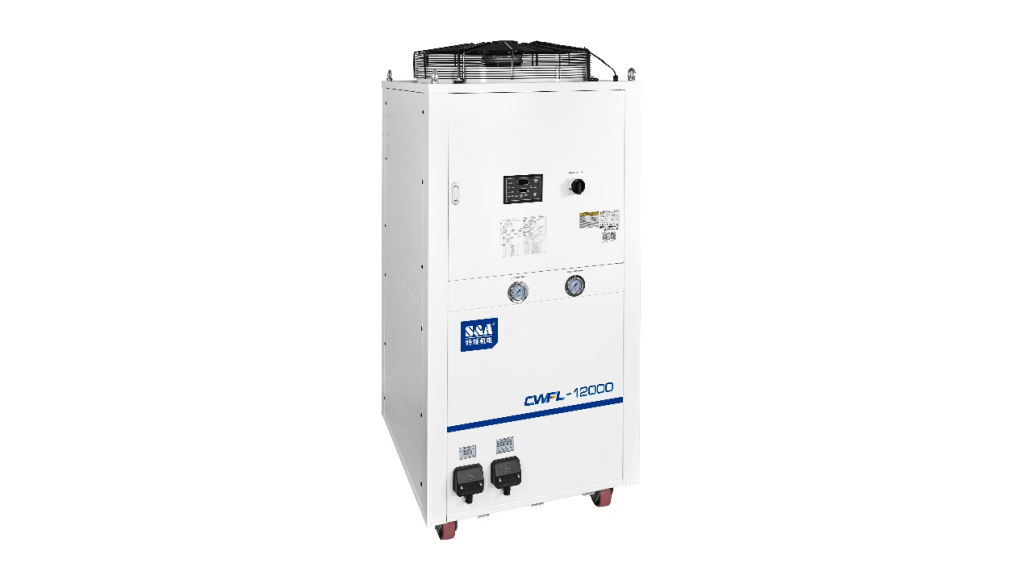

TEYU Large Capacity Industrial Refrigeration Unit CWFL-12000 for 12KW Fiber Laser
Get Instant QuoteProduct Details
Large capacity industrial refrigeration unit CWFL-12000 is specifically developed to meet the demanding requirements of fiber laser up to 12000W. It integrates a 180L reservoir and a reliable condenser which offers high level of energy efficiency. The refrigerant circuit system adopts solenoid valve bypass technology to avoid frequent start and stop of the compressor to prolong its service life. The smart temperature controller of the chiller can not only display water & room temperature but also alarm information, providing full-time protection for the chiller and the laser system as well. Modbus-485 communication protocol is supported.
Product Introduction
Model: CWFL-12000
Machine Size: 105X105X 200cm (LXW X H)
Warranty: 2 years
Standard: CE, REACH and RoHS
Product Parameters
| Model | CWFL-12000EN | CWFL-12000FN |
| Voltage | AC 3P 380V | AC 3P 380V |
| Frequency | 50Hz | 60Hz |
| Current | 4.6~28.1A | 5.9~30A |
| Machine power | 13.55kW | 12.65kW |
| Electric assisted power | 600W+3600W | |
| Precision | ±1℃ | |
| Reducer | Capillary | |
| Pump power | 2.2kW | 3.0kW |
| Tank capacity | 180L | |
| Inlet and outlet | Rp1/2″+Rp1″ | |
| Lift | 67M | 64M |
| Rated flow | 3 L/min+＞100 L/min | |
| N.W. | 395Kgs | 515Kgs |
| G.W. | 520Kgs | 660Kgs |
| Dimension | 105X105X 200 cm (LX W X H) | |
| Package dimension | 120X 120X224 cm (LX W X H) | |
The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.
Product Features
* Dual cooling circuit
* Active cooling
* Temperature stability: ±1°C
* Temperature control range: 5°C ~35°C
* Refrigerant: R-407C
* Intelligent digital control panel
* Integrated alarm functions
* Back mounted fill port and easy-to-read water level check
* RS-485 Modbus communication function
* High reliability, energy efficiency and durability
* Available in 380V
Product Details

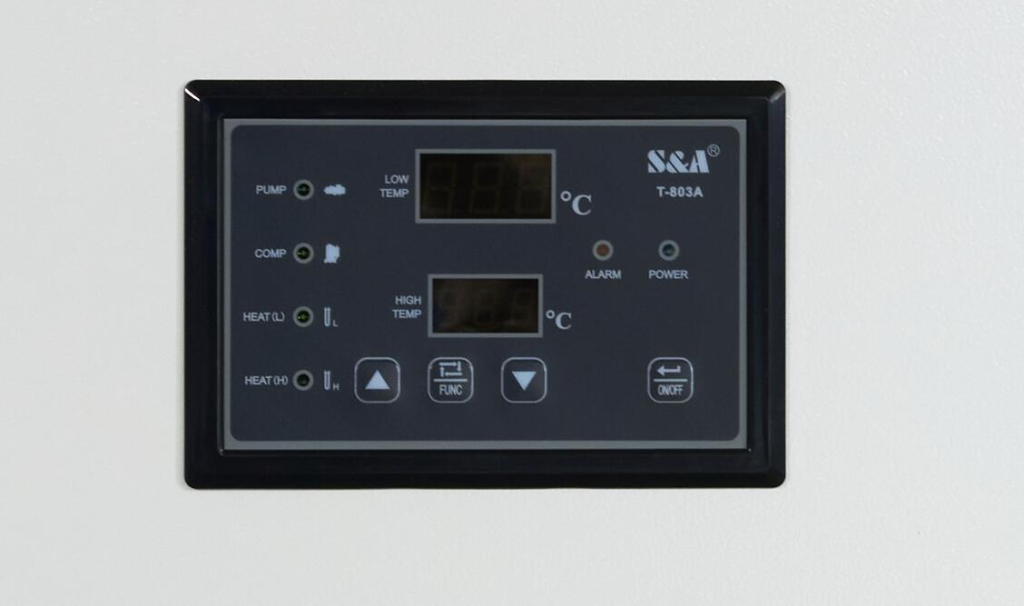

Dual temperature control
The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.
Dual water inlet and water outlet
Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.
Easy drain port with valve
Draining process can be controlled very easily.
Ventilation Distance
Product Working Principle
FAQ
What is the recommended water used in the industrial water chiller?
The ideal water should be deionised water, distilled water or purified water.
How often should I change out the water?
Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.
What is the ideal room temperature for the chiller?
The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45degree C.
How to prevent my chiller from freezing?
For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (info@whcstek.top) first.
