Product Details

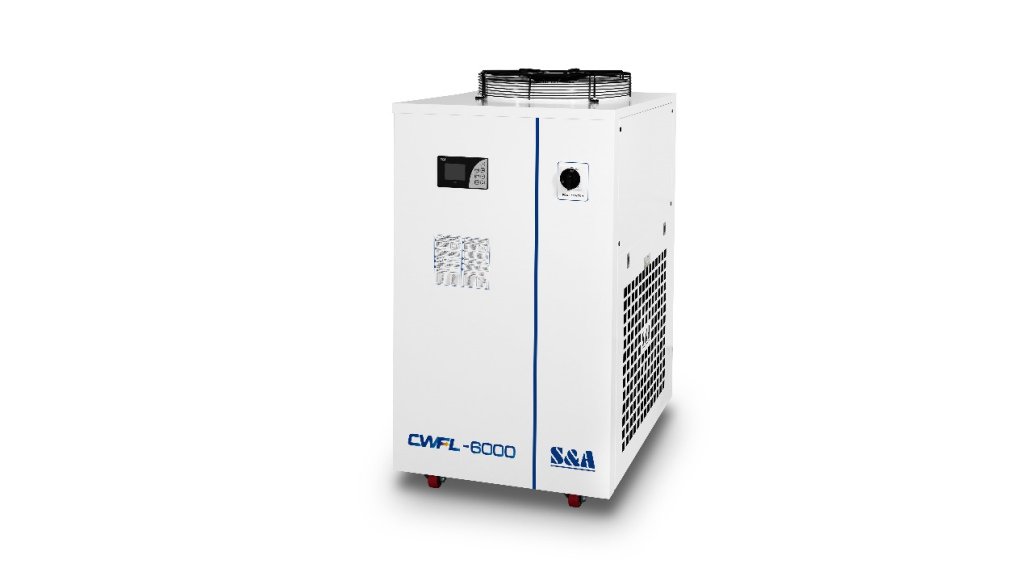

Industrial temperature control system CWFL-6000 comes with a dual refrigeration circuit. Each refrigeration circuit is working independently from the other. It is specially designed for fiber laser processes up to 6KW. Thanks to this brilliant circuit design, both the fiber laser and the optics can be perfectly cooled. Therefore, the laser output from the fiber laser processes can be more stable. The water temperature control range for this water chiller machine is 5°C ~35°C. Each of the chiller is tested under simulated load conditions at the factory before shipment and conforms to CE, RoHS and REACH standards. With Modbus-485 communication function, CWFL-6000 fiber laser chiller can communicate with the laser system very easily.

Product Introduction

Model: CWFL-6000

Machine Size: 105 X 71 X 133cm (L X W X H)

Warranty: 2 years

Standard: CE, REACH and RoHS

Product Parameters

The working current can be different under different working conditions. The above information is for reference only. Please subject to the actual delivered product.

Product Features

* Dual cooling circuit

* Active cooling

* Temperature stability: ±1°C

* Temperature control range: 5°C ~35°C

* Refrigerant: R-407C

* Intelligent digital control panel

* Integrated alarm functions

* Back mounted fill port and easy-to-read water level check

* RS-485 Modbus communication function

* High reliability, energy efficiency and durability

* Available in 380V

Product Details

Dual temperature control

The intelligent control panel offers two independent temperature control systems. One is for controlling the temperature of the fiber laser and the other is for controlling the temperature of the optics.

Dual water inlet and water outlet

Water inlets and water outlets are made from stainless steel to prevent potential corrosion or water leakage.

Easy drain port with valve

Draining process can be controlled very easily.

Ventilation Distance

Product Working Principle

FAQ

What is the recommended water used in the industrial water chiller?

The ideal water should be deionised water, distilled water or purified water.

How often should I change out the water?

Generally speaking, the water changing frequency is 3 months. It can also depend on the actual working environment of the recirculating water chillers. For example, if the working environment is too inferior, the changing frequency is suggested to be 1 month or shorter.

What is the ideal room temperature for the chiller?

The working environment of the industrial water chiller should be well ventilated and the room temperature should not be higher than 45degree C.

How to prevent my chiller from freezing?

For users living in high latitude areas especially in winter, they often face the frozen water problem. To prevent the chiller from freezing, they can add an optional heater or add anti-freezer in the chiller. For detailed use of the anti-freezer, it is suggested to contact our customer support team (info@whcstek.top) first.
