Portable 200W 2in1 Handheld Cleaning Machine

Portable 200W 2in1 Handheld Cleaning Machine

Product Details

Product Introduction

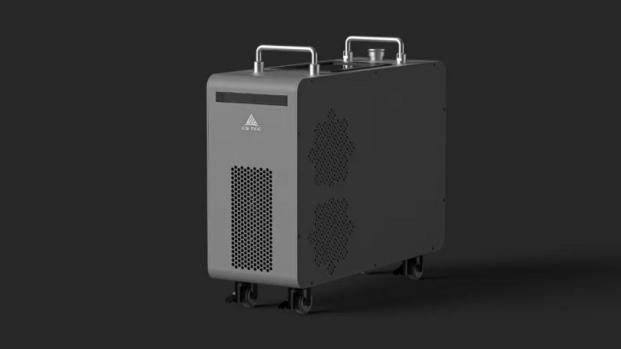

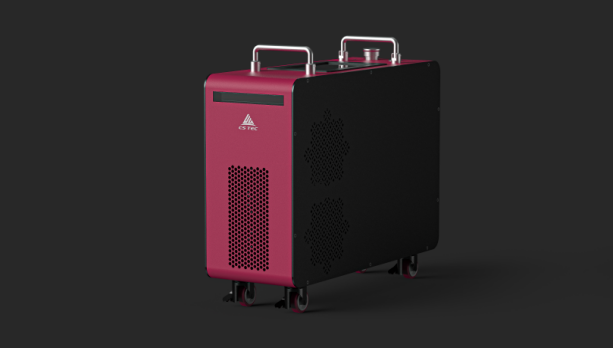

The Handheld 200W MOPA 2in1 laser cleaning machine is an efficient surface cleaning equipment that uses laser technology to remove dirt, oxide layers, coatings or other unwanted substances on the surface of objects. It uses high-energy laser beams to evaporate or ablate dirt through instantaneous pulses, thereby achieving fast, non-destructive and pollution-free cleaning results. This equipment is widely used in metal processing, automobile maintenance, cultural relic restoration and other fields, and can improve production efficiency, save energy, and reduce environmental pollution.

Product Features

■ The device is very compact 、lightweight and portable,Its size is only 450*156*310mm,And the weight is only 16kg.

■ Easy to operate, one-button operation.

■ Assisted focusing module、real-time display of processing distances.

■ High-efficient will not damage the surface of the material.

■ Red light assisted preview、precise of position the cleaning laser 、easy adjustment of system parameters.

■ Master control selection:industrial serial screen.

■ It not only cleaning also can it marked on any metal surface,saving the price of the marking machine.

Advantages

200W pulsed cleaning system has many advantages,such as good mobility,small size and light weight of laser head，convenient system parameter adjustment ，wireless control ，etc.It can efficiently remove rust 、stains、 oil stains、coating etc. on the surface of the workpieces. And can be applied to mechanical processing,mould cleaning ,food processing,electronic circuit and other industries,With the characteristics of precise postioning , it can meet the processing of various shaped of workpieces. Achieve efficient cleaning effect.

Relying on the advantage of MOPA structure ,the cleaning machine is equipped with a 200W pulsed fiber laser as the cleaning light source.The MOPA fiber laser has the characteristics of independently adjustment pulse width and frequency ,and can still maintain a high stable peak power output under the condition of changing the pulse width and frequency to adapt to a wider range of cleaning scenarios.

Full device parameters

Indicators	Unit	CS-CL-PU-CA-200-1-A
Center wavelength	NM	1060-1080
Output cable length	m	5
Average output power	W	＞200
Maximum pulse energy	mJ	1.5
Frequency adjustment range	kHz	5-200
Power adjustment range	%	0～100
Pulse width	ns	170-200
Output power instability	%	2-5%
Cooling method	/	Air-cooled
Supply voltage	V	AC 220\110V
Maximum power consumption	W	<1200
Maximum current	A	＜5
Anti-high reaction	/	Yes
Spectrum@3dB	nm	<5
Operating temperature range	℃	0～40
Storage temperature range	℃	-10～60
Indicates the red power of the light	mw	0.3-2
Beam quality㎡	/	＜1.8
weight	Kg	16

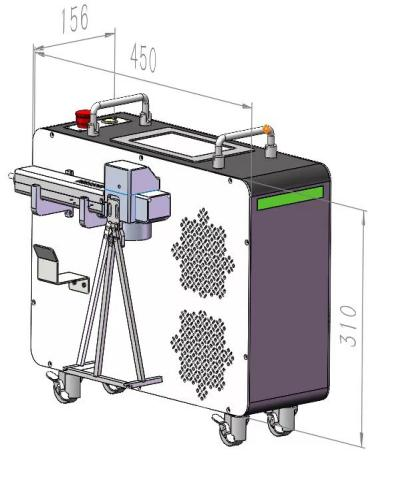

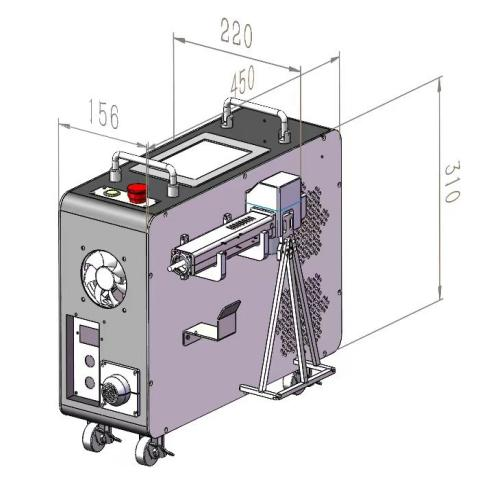

Host size	mm	450156310

◉Laser head parameters：

Indicators	Unit	Value / Range
Laser connection method	\	QCS
Cleaning speed	mm\s	30000
Cleaning mode	\	Straight\Bidirectional straight\Rectangular Fill\Petal \ Spiral Fill\Circle Fill\Rectangular Sine Wave Fill
Marking mode		Select the toggle that
Supply laser power	W	200
Water-cooled water circuit1	\	without
Voltage	V	±15
Current	A	MAX 3A
Operating humidity	%	≤90 without condensation
Operating temperture	℃	-15~65
Lens protection airway	\	yes
Adapted power range	W	50W~200W pulse air cooling
Cleaning range	mm	100(F160);175(F255);220(F330)

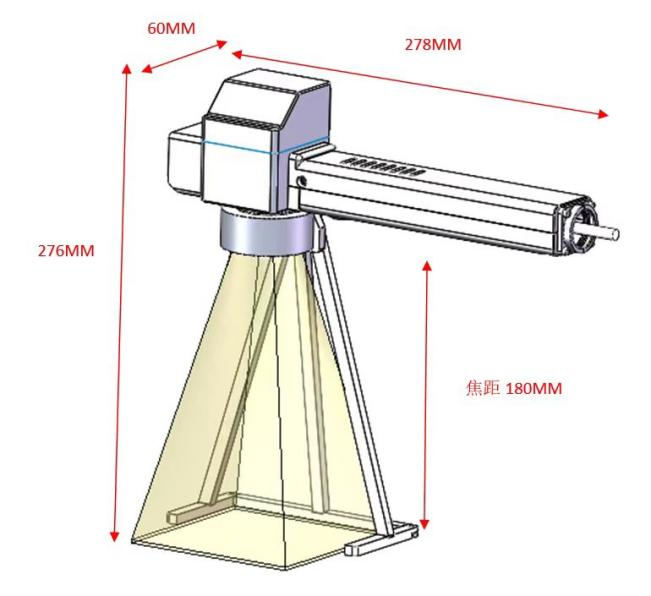

Cleaning head size	mm	27860276

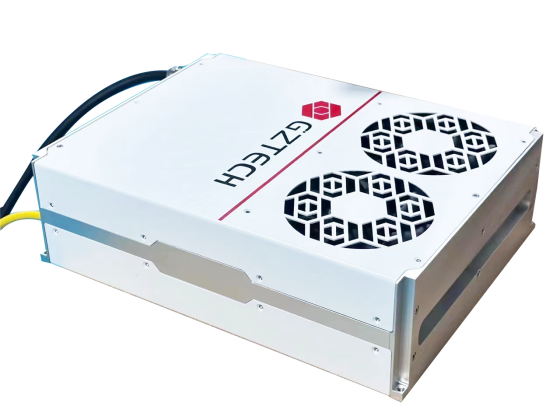

◉Laser Source

Indicators	Unit	Value / Range
Wavelength	NM	1060-1080
Spectrum width@3dB	NM	＜5
Maximum pulse energy	MJ	1.5@135kHz
Output power	W	200
Power adjustment range	100%	0-100
Frequency adjustment range	kHZ	5-200
On / Off light response time	μs	＜20
Pulse width	Ns	150-190@135kHz
Output power instability	%	<5
Beam quality M2	/	<1.8
Polarization direction	/	random
Whether to resist high	/	yes
Indicate the (red) optical power	mW	0.3-2
Spot diameter （4σ）	mm	5-7
Output armor cable length	m	5

◉Controller

The control card is a control card developed for marking machines using pulsed fiber lasers, ultraviolet lasers, and CO2 lasers.

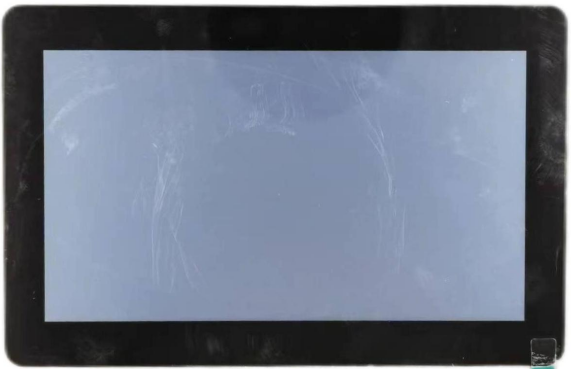

Front

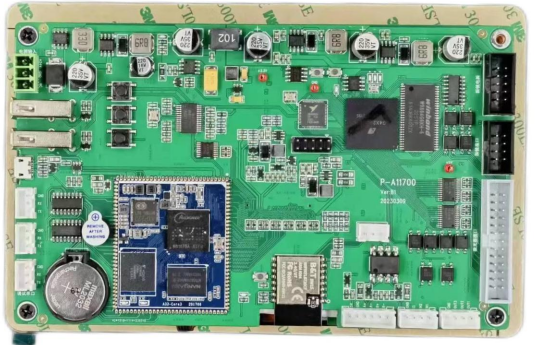

Back

Feature:

1. The laser control software and control board are integrated to reduce wiring harnesses and are more suitable for portable marking machines;

2. Full-screen solution, simple and beautiful, easy to install

3. 24V input, built-in galvanometer power supply with ±15V power output, reducing costs. The cable can be directly plugged into the galvanometer. It is easy to install and is tailor-made for handheld and portable galvanometers;

4. With WIFI+BT optional Internet of Things wireless connection module, it can be connected with mobile phones or other Internet devices;

5. The laser interface can be directly connected to the laser using a cable, which is convenient for installation and is more suitable for handheld and portable lasers;

6. The software control operation is simpler and more convenient than other software, and is specially developed for handheld marking equipment;
