MAX 500W MOPA PULSED FIBER LASER
Get Instant QuoteProduct Details

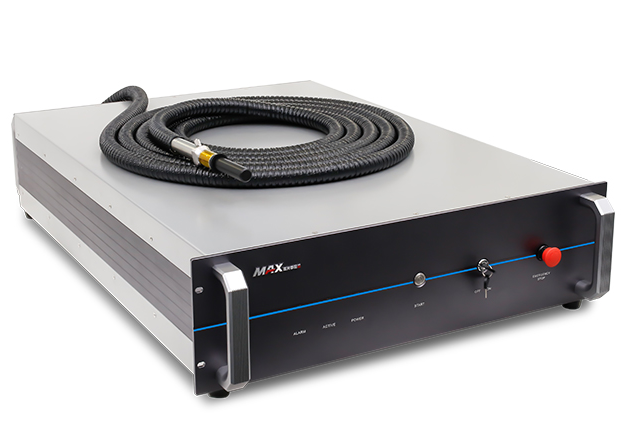

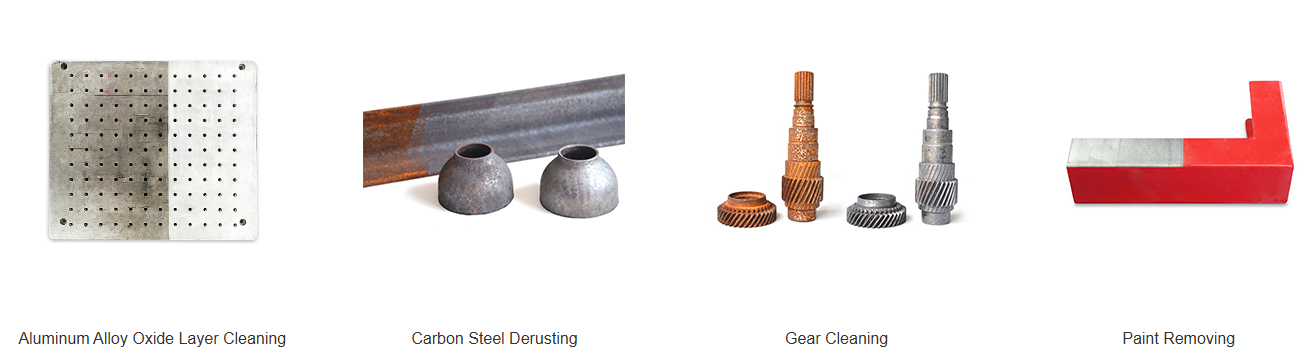

The MFPT-500W MOPA fiber laser is one of the cutting-edge products of Maxphotonics, which is constructed with a main oscillator and a high power fiber amplifier (MOPA).Multiple power options and compact structure. Easy to operate, overall maintenance free, can be directly integrated into user equipment. A periodic pulse sequence with a wavelength of about 1060 nm and a peak power of more than 250 KW is used. The operating parameters of the laser are set by the 25Pin control interface, and the special controller of the customer can be used for the handheld laser. Mainly used in laser cleaning.

| Model | MFPT-500W |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 500W |
| Mode of Operation | Pulsed |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1064 nm |
| Power Stability | ≤5 % |
| Laser Beam Quality, BPP | ≤10 mm x mrad |
| Pulse Energy | 50 mJ |
| Pulse Duration | 30~500 ns |
| Repetition Rate | 10-3000 kHz |
| FIBER DELIVERY SYSTEM | |
| Interface | QBH |
| Length | 10m standard, other lengths optional |
| Diameter | 200 μm |
| Beam Divergence Angle | ≤100 mrad |
| ELECTRICAL RATINGS | |
| Supply Voltage | 220 VAC Single-phase |
| Power Consumption | ≤2000 W |
| OTHER SPECIFICATIONS | |
| Operating Temperature | 0 to +40℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 95% |
| Cooling Method | Water Cooling |
| Cooling Medium | Distilled water/ Glycol Antifreeze |
| Dimension | 720×482.6×190 mm |
| Weight | 52 kg |
