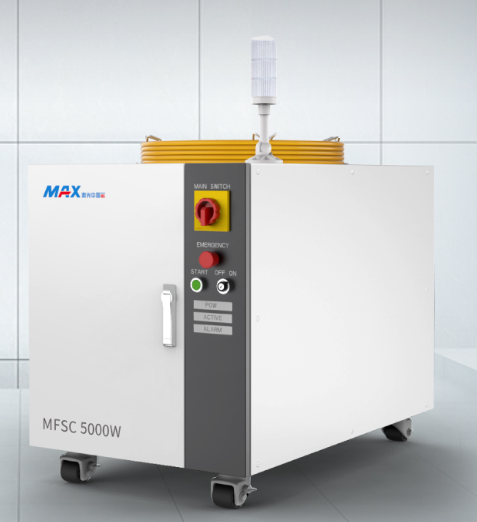

MAX 5000W-6000W SINGLE MODULE CW FIBER LASER

Get Instant Quote

Product Details

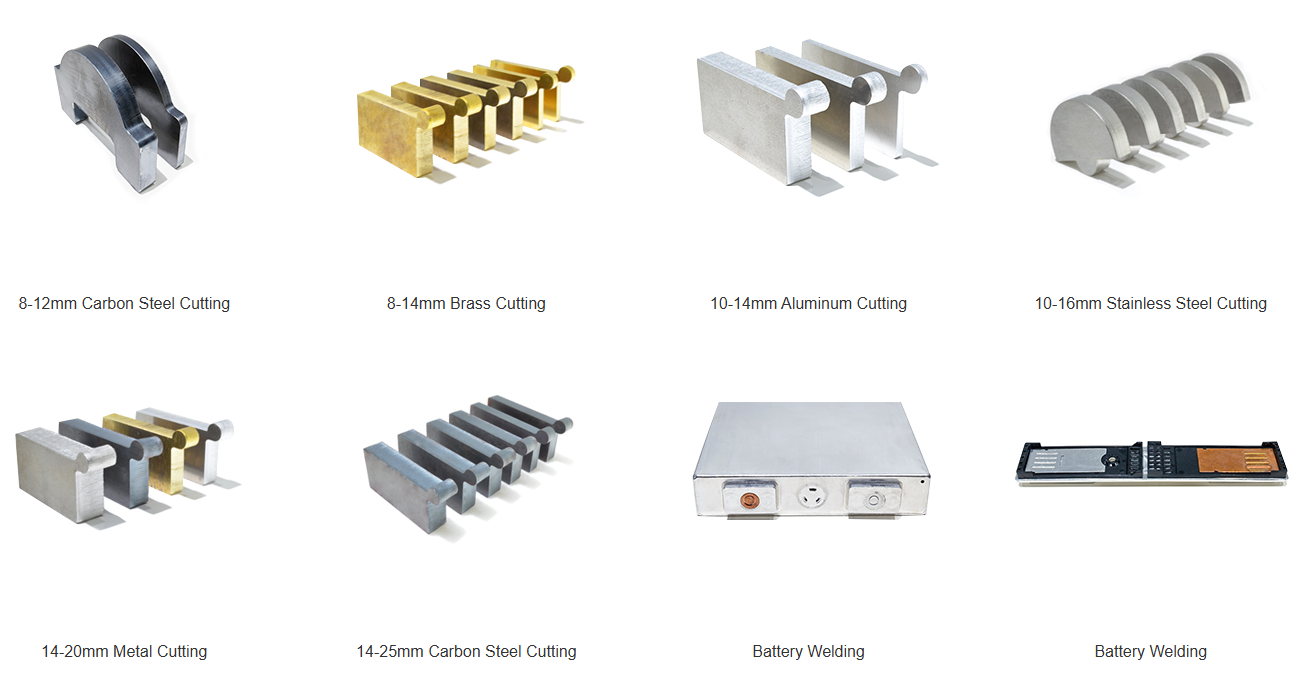

5000W-6000W SINGLE MODULE CW FIBER LASER is a high-power fiber laser with high electro-optical conversion efficiency, compact size, good beam quality and maintenance-free. It also takes into account the high-speed cutting of thin plates and the bright surface cutting of medium and thick plates, which greatly improves the perforation and cutting. Process quality such as welding, mainly used in metal drilling, cutting, welding and other fields such as new energy, 3C, precision machining.

ModelsMFSC-5000WMFSC-6000W
OPTICAL SPECIFICATIONS
Nominal Power5000W6000W
Mode of OperationCW/Modulated
PolarizationRandom
Power Tunability10 to 100%
Wavelength1080 ± 10 nm
Power Stability±1 %
Laser Beam Quality, BPP2.8 to 3.6 mm x mrad (100μm QBH)
Modulation Frequency≤5 KHz
Preview Red Light Power200 μW
FIBER DELIVERY SYSTEM
InterfaceQBH (LOC)
Length20m standard, other lengths optional
Diameter100(150/200) μm
Bending Radius200 mm
ELECTRICAL RATINGS
Supply Voltage400VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature+10 to +40℃
Storage Temperature-10 to +60℃
Humidity10 to 85%
Cooling MethodWater Cooling
Cooling MediumDistilled water/ Glycol Antifreeze
Dimension640×1173×1102 mm
Weight240(±20) kg
