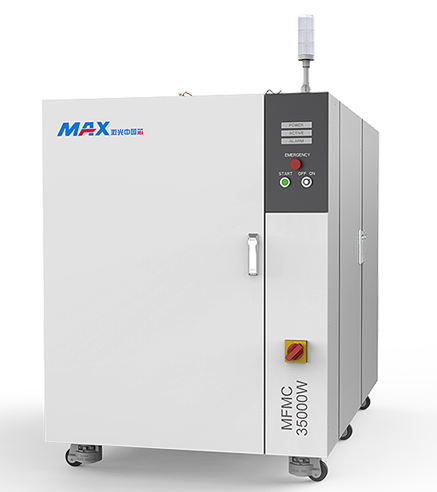

MAX 30000W-40000W MULTI-MODULE CW FIBER LASER
Get Instant QuoteProduct Details

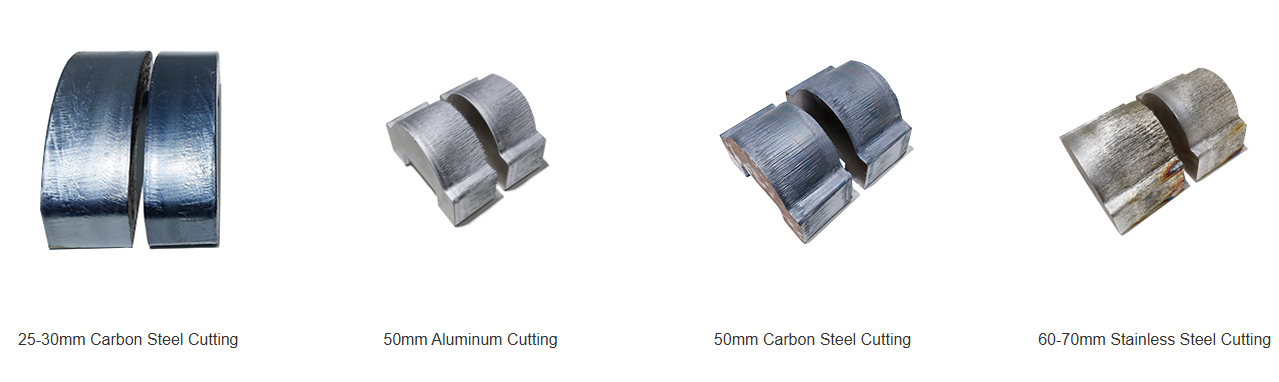

Maxphotonics 30000W-40000W Multi-Module CW Fiber Laser adopts water cooling, modular design, compact structure, highly integrated system, maintenance-free and high reliability. The laser power is continuously adjustable, with high electro-optical conversion efficiency , high beam quality , and high laser stability. It is an ideal laser source for thick plate laser cutting, laser welding, laser cladding, surface heat treatment and other applications. 30000W-40000W CW Fiber Laser adopts optical fiber with QBH head output 30000W-40000W CW Fiber Laser adopts optical fiber with LOE head output, which can be used with laser processing heads, galvanometers, etc,for system integration with robots and machine tools. It is widely used in hardware, medical, automotive, marine, aviation, Construction machinery and other industry.


| Models | MFMC-30000W | MFMC-40000W |
| OPTICAL SPECIFICATIONS | ||
| Nominal Power | 30000W | 40000W |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | 10 to 100% | |
| Wavelength | 1080 ± 5 nm | |
| Laser Beam Quality, BPP | 5 to 6.5 mm x mrad (150μmQBH) | |
| 8 to 10 mm x mrad (200μmQBH) | ||
| Modulation Frequency | ≤5 kHz | |
| Preview Red Light Power | 200 μW | |
| FIBER DELIVERY SYSTEM | ||
| Interface | LOE | |
| Length | 20m standard, other lengths optional | |
| Diameter | 150/200 μm | |
| Bending Radius | 200 mm | |
| ELECTRICAL RATINGS | ||
| Supply Voltage | 400VAC (-15% to +10%) 3-phase | |
| OTHER SPECIFICATIONS | ||
| Operating Temperature | +10 to +40℃ | |
| Storage Temperature | -10 to +60℃ | |
| Humidity | 10 to 80% | |
| Cooling Method | Water Cooling | |
| Cooling Medium | Distilled water/ Glycol Antifreeze | |
| Dimension | 1050×1909×1658 mm | |
| Weight | 1140(±10) kg | 1265(±10) kg |
