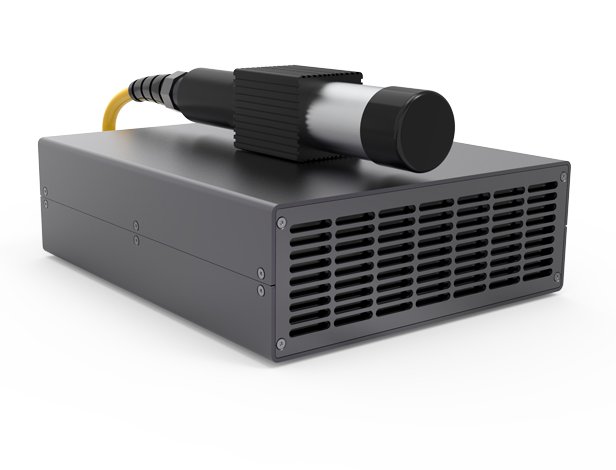

MAX 20X Q-SWITCH PULSED FIBER LASER
Get Instant QuoteProduct Details
Q-switch series pulsed fiber laser is designed based on Q-switch oscillator and MOPA. The laser is transmitted by fiber and isolator, and is controlled through a 25-pin interface. The Q-switched pulse fiber laser is suitable for intergration, and could meet the requirements of plastic marking, metal marking, engraving, coating removal,fine cutting, drilling, etc.
| Model | MFP-20X |
| OPTICAL SPECIFICATIONS | |
| Nominal Power | 18~19W |
| Mode of Operation | Pulsed |
| Polarization | Random |
| Power Tunability | 10 to 100% |
| Wavelength | 1064 ± 5 nm |
| Power Stability | ≤5 % |
| Laser Beam Quality M² | 1.1~1.6 |
| Pulse Energy | 0.7 mJ |
| Pulse Duration | 70~110 ns |
| Repetition Rate | 27.7~62.5 kHz |
| FIBER DELIVERY SYSTEM | |
| Length | 1.9~3m standard, other lengths optional |
| Beam Diameter | 6~9 mm |
| Beam Ellipticity | 90% |
| ELECTRICAL RATINGS | |
| Supply Voltage | 24 VDC |
| OTHER SPECIFICATIONS | |
| Operating Temperature | +10 to +40℃ |
| Storage Temperature | -10 to +60℃ |
| Humidity | 10 to 95% |
| Cooling Method | Air Cooling |
| Dimension | 244×200×73 mm |
| Weight | 5 kg |
