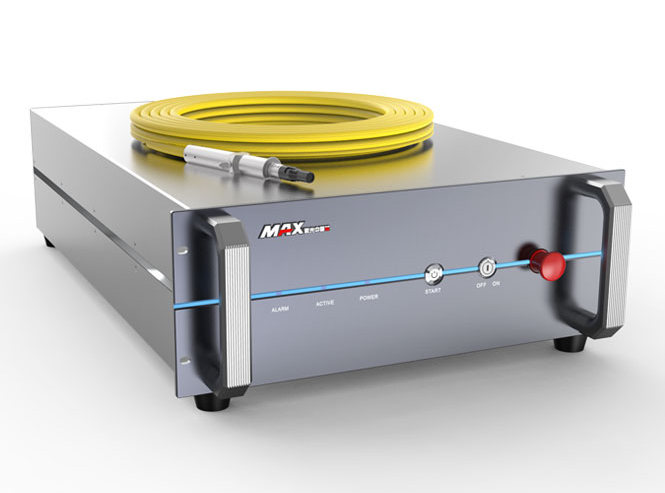

MAX 2000X-3000X SINGLE MODULE CW FIBER LASER
Get Instant QuoteProduct Details

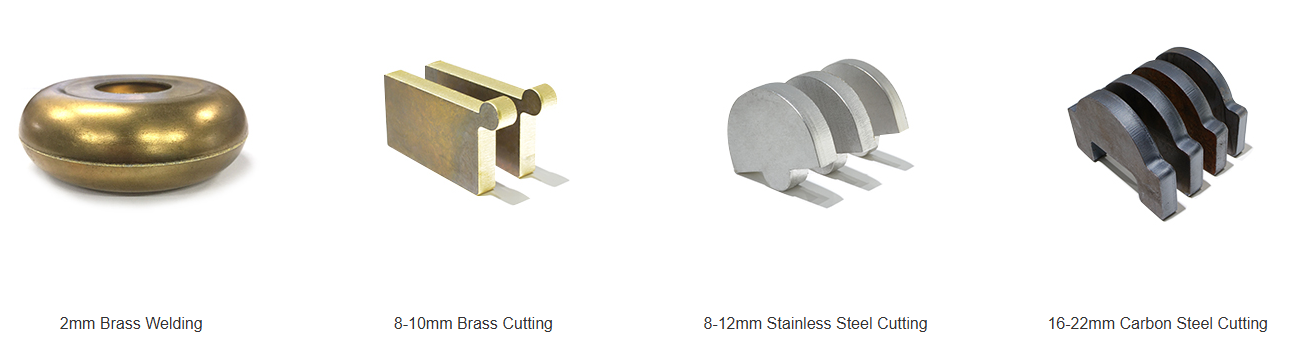

New generation 2000X-3000X Single Module CW Fiber Laser, which combine with high power, light weight, high quality beam quality and high light conversion efficiency. It is used for quick cutting, high frequency cutting and smooth surface cutting of carbon steel, stainless steel, brass and aluminum. It can meet the requirements of precision machining, 3C product welding and high- reflective material cutting. Product advantages : 1. High power output. 2. Fully sealed design. 3. More stable processing.
| Models | MFSC-2000X | MFSC-3000X |
| OPTICAL SPECIFICATIONS | ||
| Nominal Power | 2000W | 3000W |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | 10 to 100% | |
| Wavelength | 1080 ± 10 nm | |
| Power Stability | ±1 % | |
| Laser Beam Quality, BPP | 1.1 to 1.5 mm x mrad (50μm QBH) | |
| 2.8 to 3.6 mm x mrad (100μm QBH) | ||
| Modulation Frequency | ≤5 KHz | |
| Preview Red Light Power | 200 μW | |
| FIBER DELIVERY SYSTEM | ||
| Interface | QBH (LOC) | |
| Length | 15m standard, other lengths optional | 20m standard, other lengths optional |
| Diameter | 50(100/200) μm | |
| Bending Radius | 200 mm | |
| ELECTRICAL RATINGS | ||
| Supply Voltage | 400VAC (-15% to +10%) 3-phase | |
| OTHER SPECIFICATIONS | ||
| Operating Temperature | +10 to +40℃ | |
| Storage Temperature | -10 to +60℃ | |
| Humidity | 10 to 85% | |
| Cooling Method | Water Cooling | |
| Cooling Medium | Distilled water/ Glycol Antifreeze | |
| Dimension | 482.6×950×193 mm | |
| Weight | 72(±3) kg | 80(±3) kg |
