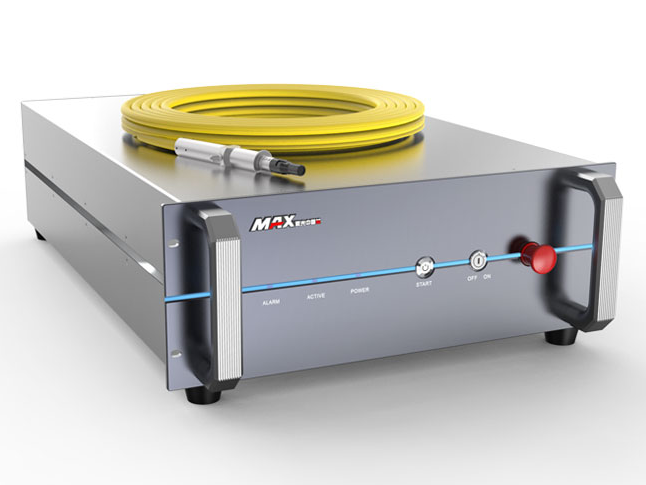

MAX 2000W-3000W SINGLE MODULE CW FIBER LASER

Get Instant Quote

Product Details

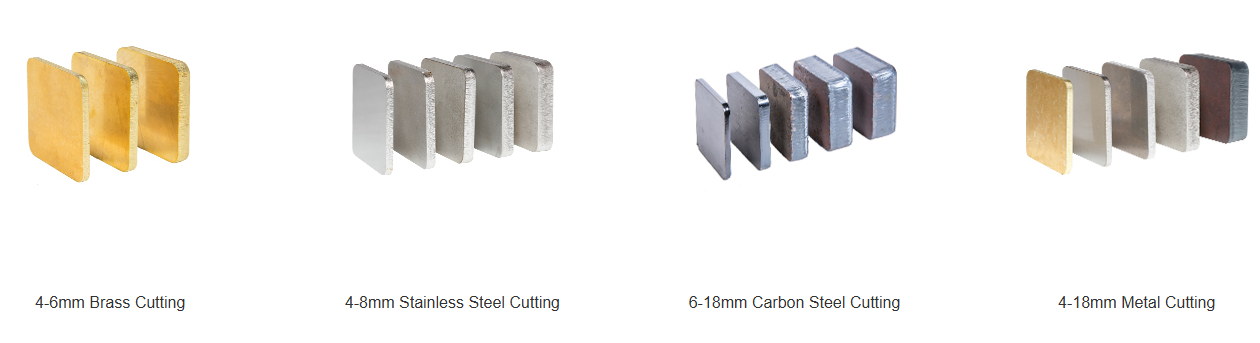

The new generation of Single Module 2000W-3000W Fiber Lasers which combined with high power, compact size, superior beam quality, and high light conversion efficiency. It can meet the requirements of precision processing, 3C product welding and high-reflective material cutting ability are significantly improved. It is suitable for remote processing, high-frequency laser cutting and clean surface cutting. It can be quickly and conveniently integrated into machine tool equipment and large-scale factory automation production line. Product advantages: 1. More reliable and saving power. 2. Easy to maintain. 3. Easy to operate.

ModelsMFSC-2000WMFSC-3000W
OPTICAL SPECIFICATIONS
Nominal Power2000W3000W
Mode of OperationCW/Modulated
PolarizationRandom
Power Tunability10 to 100%
Wavelength1080 ± 10 nm
Power Stability±1 %
Laser Beam Quality, BPP1.1 to 1.5 mm x mrad (50μm QBH)
2.8 to 3.6 mm x mrad (100μm QBH)
Modulation Frequency≤5 KHz
Preview Red Light Power200 μW
FIBER DELIVERY SYSTEM
InterfaceQBH (LOC)
Length15m standard, other lengths optional20m standard, other lengths optional
Diameter50(100/200) μm
Bending Radius200 mm
ELECTRICAL RATINGS
Supply Voltage400VAC (-15% to +10%) 3-phase
OTHER SPECIFICATIONS
Operating Temperature+10 to +40℃
Storage Temperature-10 to +60℃
Humidity10 to 85%
Cooling MethodWater Cooling
Cooling MediumDistilled water/ Glycol Antifreeze
Dimension482.6×950×193 mm
Weight72(±3) kg80(±3) kg
