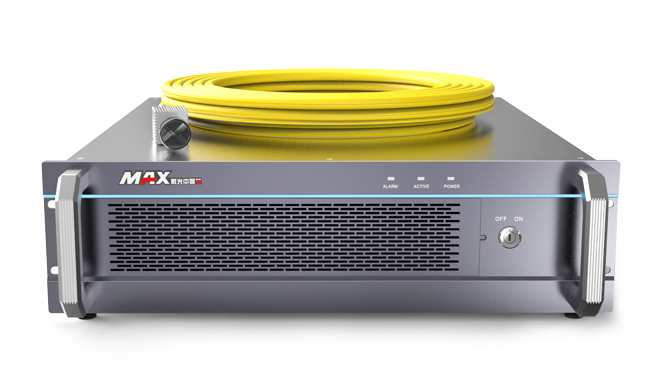

MAX 100M+-300M+ MOPA PULSED FIBER LASER
Get Instant QuoteProduct Details

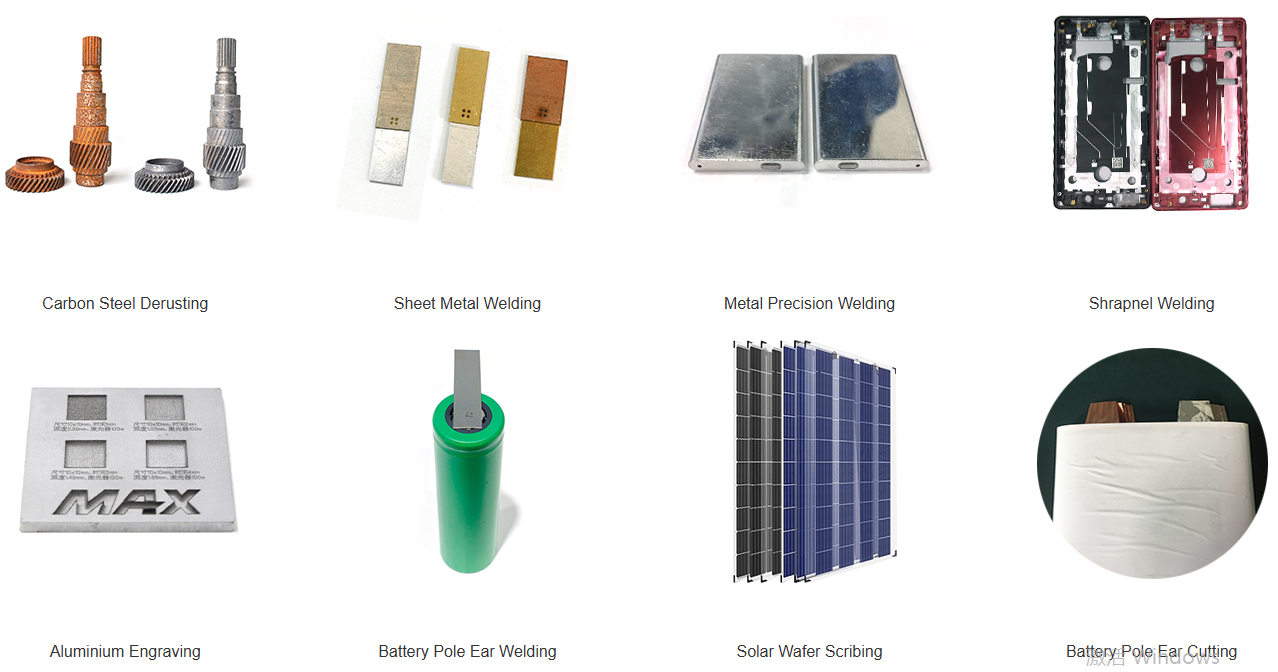

MOPA pulsed fiber laser are designed based on MOPA structure, the pulse width and frequency can be adjustable,which makes more application possible. The pulse width could be adjusted from 10-500ns, the peak power could reach up to 10KW, and the frequency could reach up to 4000kHz. The MOPA pulse fiber laser is ideal for alumina black marking,stainless steel multicolour marking,plastic marking, fine removel, laserengraving, etc.
| Models | MFPT-100 M+ | MFPT-120 M+ | MFPT-150 M+ | MFPT-200 M+ | MFPT-250 M+ | MFPT-300 M+ |
| OPTICAL SPECIFICATIONS | ||||||
| Nominal Power | ≥100 | ≥120 | ≥150 | ≥200 | ≥250 | ≥300 |
| Mode of Operation | Pulse & Continuous | |||||
| Polarization | Random | |||||
| Power Tunability | 10 to 100% | |||||
| Central Wavelength | 1060~1070nm | |||||
| Power Stability | <5 % | |||||
| Laser Beam Quality M2 | <1.6, typical value 1.3 | |||||
| Max Pulse Energy | 1.8 mJ | |||||
| Pulse Duration | 10~500 ns | |||||
| Repetition Rate | 1~4000 kHz | |||||
| FIBER DELIVERY SYSTEM | ||||||
| Length | 5m standard, other lengths optional | |||||
| Beam Diameter | 5~7mm | 8±1mm | ||||
| ELECTRICAL RATINGS | ||||||
| Supply Voltage | 220 VAC Single-phase | |||||
| OTHER SPECIFICATIONS | ||||||
| Operating Temperature | 0 to +40℃ | |||||
| Storage Temperature | -10 to +60℃ | |||||
| Humidity | 10 to 95% | |||||
| Cooling Method | Air Cooling | |||||
| Dimension | 490.4*422*131.3 mm | |||||
| Weight | 25 kg | |||||
