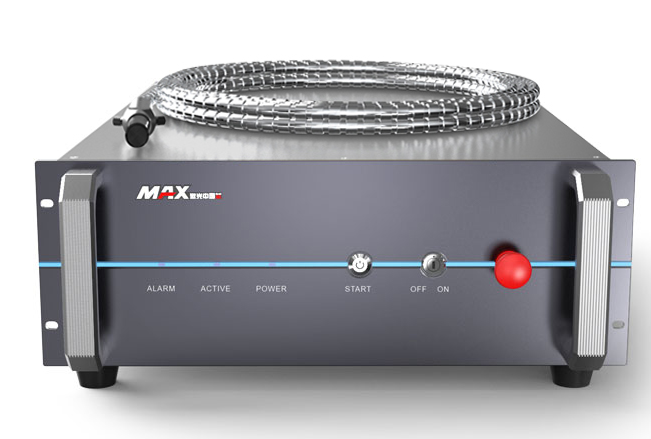

MAX 1000W-1500W SINGLE MODULE CW FIBER LASER
Get Instant QuoteProduct Details

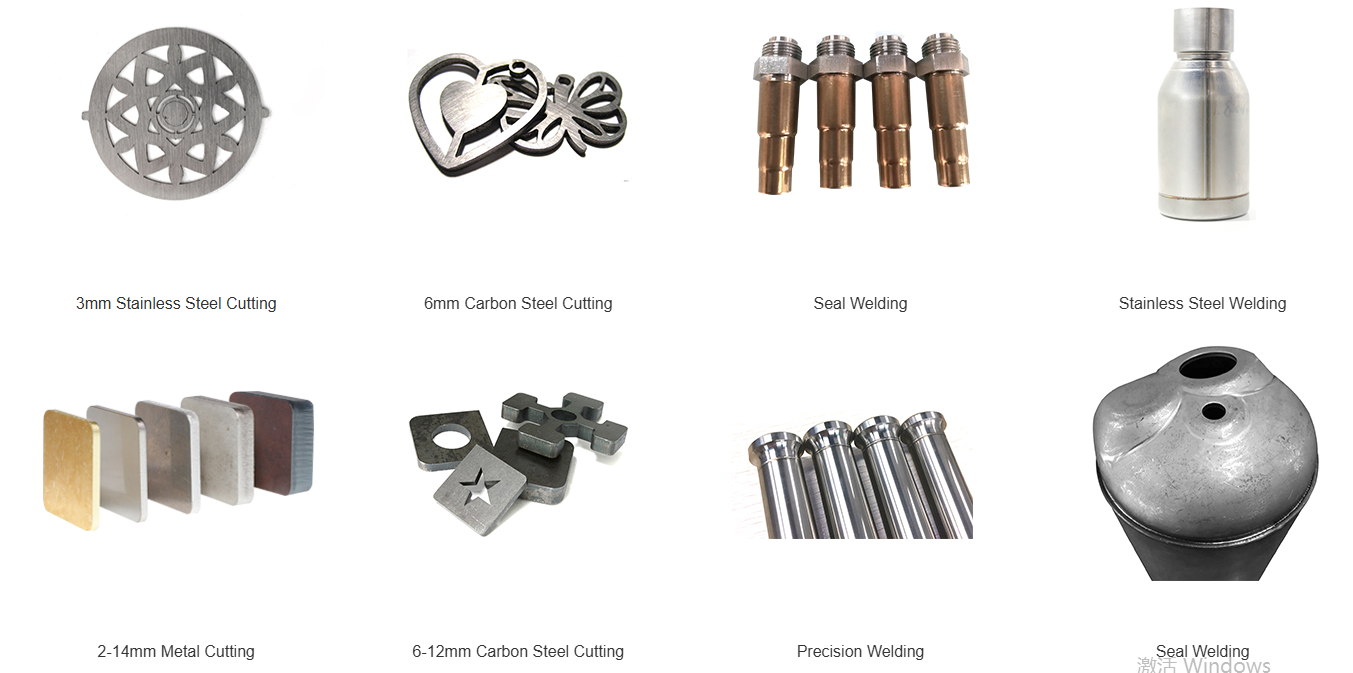

MFSC 1000W-1500W Single Module CW Fiber Laser, based on modular design,has excellent beam quality and high stability, which structure is compact and water-cooling. The laser can be adjusted continuously, and the beam is transmitted be fiber and QBH connector, which is ideal for laser cutting, laser welding, etc . The laser is very suitable for system intergration with robot or machine tool, and is widely used for laser cutting, welding, 3D printing, electronics, automobile parts,aerospace, etc.
| Models | MFSC-1000W | MFSC-1500W |
| OPTICAL SPECIFICATIONS | ||
| Nominal Power | 1000W | 1500W |
| Mode of Operation | CW/Modulated | |
| Polarization | Random | |
| Power Tunability | 10 to 100% | |
| Wavelength | 1080 ± 10 nm | |
| Power Stability | ±1 % | |
| Laser Beam Quality, BPP | ≤1.5 mm x mrad (50μm QBH) | |
| Modulation Frequency | ≤20 kHz | |
| Preview Red Light Power | 150 μW | |
| FIBER DELIVERY SYSTEM | ||
| Interface | QBH (LOC) | |
| Length | 15m standard, other lengths optional | |
| Diameter | 50 μm | |
| Bending Radius | 200 mm | |
| ELECTRICAL RATINGS | ||
| Supply Voltage | 220VAC (-15% to +10%) Single-phase | |
| OTHER SPECIFICATIONS | ||
| Operating Temperature | +10 to +40℃ | |
| Storage Temperature | -10 to +60℃ | |
| Humidity | 10 to 85% | |
| Cooling Method | Water Cooling | |
| Cooling Medium | Distilled water/ Glycol Antifreeze | |
| Dimension | 482.6×800×193mm (W×D×H) | |
| Weight | 53(±3) kg | 57(±3) kg |
