Product Details

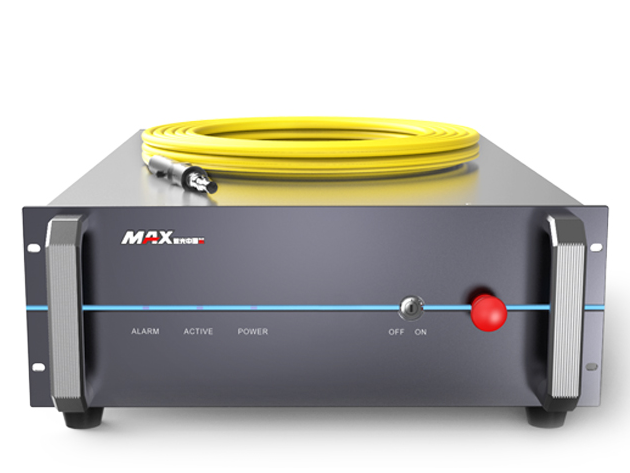

MAX 1000/2000W QCW FIBER LASER

Get Instant Quote

Product Details

The product has various compatibility and control modes, which can switch between pulse and continuous mode, and simultaneously handle the.processing tasks of two different lasers The pulse width waveform is flexible and adjustable, the heat dissipation isfast, and the electro-optical conversion rate is over 30%, which is another option for the long pulse width , high peak power applications.

ModelMFSQ-1000/2000W
OPTICAL SPECIFICATIONS
CW Mode Max Power1000W
Pulsed Mode Max Power2000W
Mode of OperationCW/Modulated
PolarizationRandom
Power Tunability10 to 100%
Wavelength1080 ± 10 nm
Power Stability3%
Laser Beam Quality M²2.5(50um)
Pulse Energy60 J
Pulse Duration0.1~50 Ms
Repetition Rate1~5000 Hz
Preview Red Light Power100 μW
FIBER DELIVERY SYSTEM
InterfaceQBH (LOC)
Length15 m standard, other lengths optional
Diameter30/50 μm
Bending Radius200 mm
ELECTRICAL RATINGS
Supply Voltage220VAC
Rated Power7 KW
OTHER SPECIFICATIONS
Operating Temperature+10 to +40℃
Storage Temperature-10 to +60℃
Humidity10 to 85%
Cooling MethodWater Cooling
Dimension950×482.6×193.2 mm
Weight68 kg
