Large Format Splicing Fiber/UV/CO2 Laser Marking Machine

Product Details

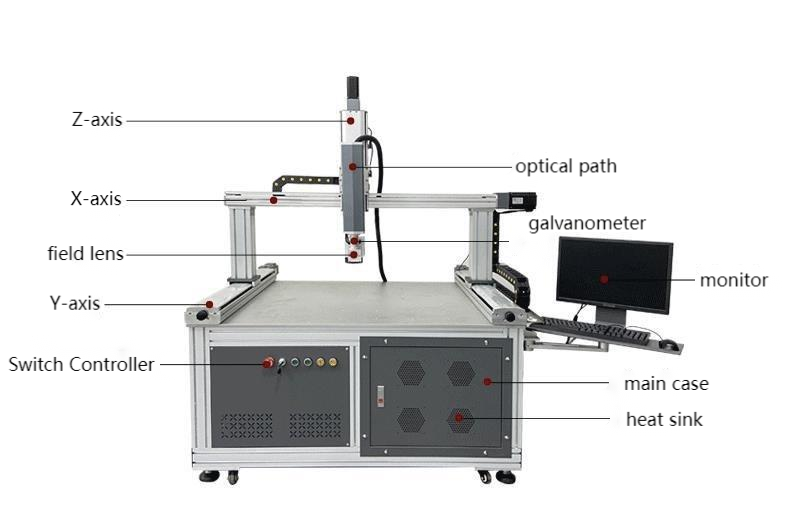

Visual Configuration
Laser	Fiber/CO2/UV
Laser Source Wavelength	1064nm/10.6μm/355nm
Main control box	Laser integrated power supply
Indicator System	Built-in contour, size and direction position indication
Lens System	Lattice Optical Lens
Cooling System	Built-in air cooling
Laser Vibration Lens	MAC high-speed digital scanning galvanometer
Vision System	MAC
Laser Professional Control Cards	Vision Automatic Motion Control Card

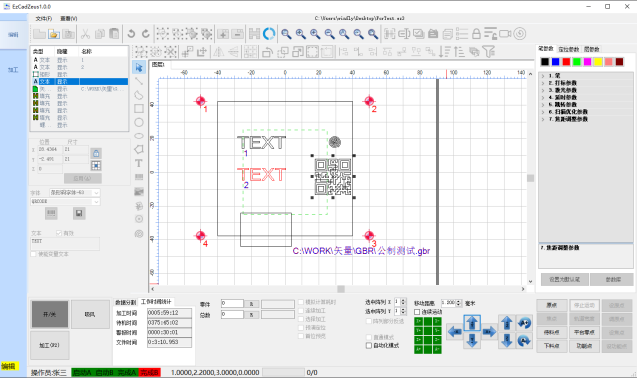

Marking Software	EZCAD 2.14+ Visual Recognition Motion Software
Specialized Stands	All-in-one lift
Display	LCD monitor 18.5 inch
Host System	4U industrial control mainframe windows 7

Large format galvanometer laser processing

	The large format galvanometer laser processing system is a universal laser processing system that integrates galvanometer control, machine vision, servo and stepper drive control technologies. It features multi-axis linkage, various combinations of correction, high-precision camera positioning, rich CAD, etc. It can be used in the field of high-efficiency and precise processing. Corresponding Zeus sub-systems, PCB laser processing sub-systems and glass laser processing sub-systems have been developed for the large-format laser laser engraving application, PCB processing and glass industry.
