jtp SEAL 355-20S
Get Instant QuoteProduct Details

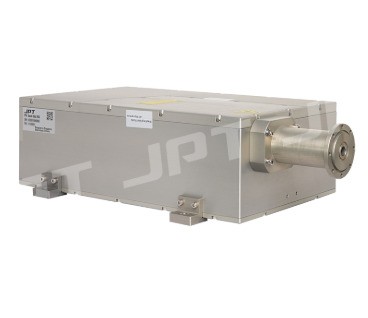

Seal-355-20S UV DPSSL adopts an integrated structure design. Combining the optical unit with external driving circuit, which makes that the product has a strong anti-interference capability. The optical unit and circuit are fully sealed. It is fully capable of working in high temperature and humidity environment. LBO electric point switching function ensures the product’s longer service life.
Application Advantages
Photoelectric integration, Anti-interference, One-button start
Compact size, saving installation space
Air self-purification system
LBO Point electric switch, longer service life
Fully sealed structure, without fear of high temperature, high humidity environment
| Parameter Unit | Parameter |
| Product Model | Seal-355-20S |
| Central Emission Wavelength | 355nm |
| Average Power | >20W@70kHz |
| Pulse Duration | <15ns@70kHz |
| Pulse Repetition Rate Range | 30kHz-300kHz |
| Spatial Mode | TEM00 |
| Beam Quality | M² ≤ 1.3 |
| Beam circularity | >90% |
| Beam Full Divergence Angle | ≤2mrad |
| Beam Diameter | Non- expanding: 0.8±0.1mm |
| Polarization Ratio | > 100:1 |
| Polarization Orientation | Horizontal |
| Average Power Stability | RMS ≤ 3% @ 24hrs |
| Pulse to Pulse Energy Stability | RMS ≤ 3% @70kHz |
| Operating Temperature | 0~40℃ |
| Storage Temperature | -15~50℃ |
| Cooling Method | Water- cooled |
| Supply Voltage | DC 36V |
| Average Power Consumption | 300W |
| Three- Dimensions （W×D×H） | 465.5 × 205 × 120mm |
| Weight | 12.33kg |
