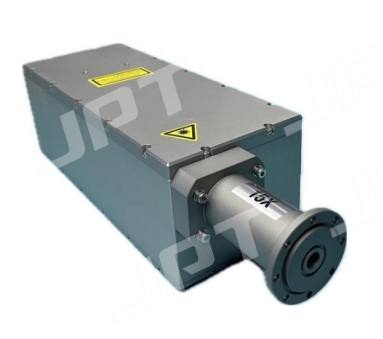

jpt SEAL-355-10E
Get Instant QuoteProduct Details
JPT’s Seal series in the power ultraviolet category includes a 10W ultraviolet laser. The lasers in this series provide superior beam quality (M²<1.25) and excellent spot characteristics (spot roundness greater than 90%). The entire machine adopts an integrated structural design, combining the optical path and external drive circuit, which gives this product series strong anti-interference capability. The optimized and upgraded fully-sealed structure effectively prevents external dust from entering. Additionally, by isolating external moisture molecules, the entire machine possesses robust moisture resistance, allowing the Seal series to adapt to even more challenging industrial environments.
Application Advantages
Shorter pulse width <20ns @ 60kHz
Excellent pulse stability <5% RMS @ 60kHz
Repetition rate range 40kHz~150kH
| Parameter Unit | Parameter |
| Laser Type | 10W Ultraviolet Integrated Laser |
| Model Number | SEAL-355-10E |
| Wavelength | 355nm |
| Mean Power | ＞10W@60kHz |
| Pulse Duration | <20ns@60kHz |
| Frequency Range | 40kHz-150kHz |
| Spatial Mode | TEM00 |
| Beam Quality(M² ) | M²≤1.25 |
| Beam Circularity | >90% |
| Beam Full Divergence Angle | ≤2mrad |
| Beam Diameter（1/e²） | 0.45±0.15mm |
| Beam Expander Inside | 15X |
| Polarization Ratio | ＞100:1 |
| Polarization Orientation | Horizontal |
| Average Power Stability | RMS≤3%@24hr |
| Pulse-to-Pulse Stability | RMS≤5%@80kHz |
| Operating Temp.&RH | 0℃~40℃；＜80% |
| Storage Temp.&RH | -15℃~50℃；＜90% |
| Cooling Mode | Water-cooling |
| Cooling Capacity Requirement | 500W |
| Electricity Requirement | DC 36V |
| Supply Current | ＞7A |
| Average Power Consumption | ＜250W |
| Three-Dimensional Size | 302mm×120mm×104mm（L×W×H） |
| Package Size | 532mm×2000mm×250mm（L×W×H） |
| Weight | Net weight≈6.8KG Package included≈9.1KG |
