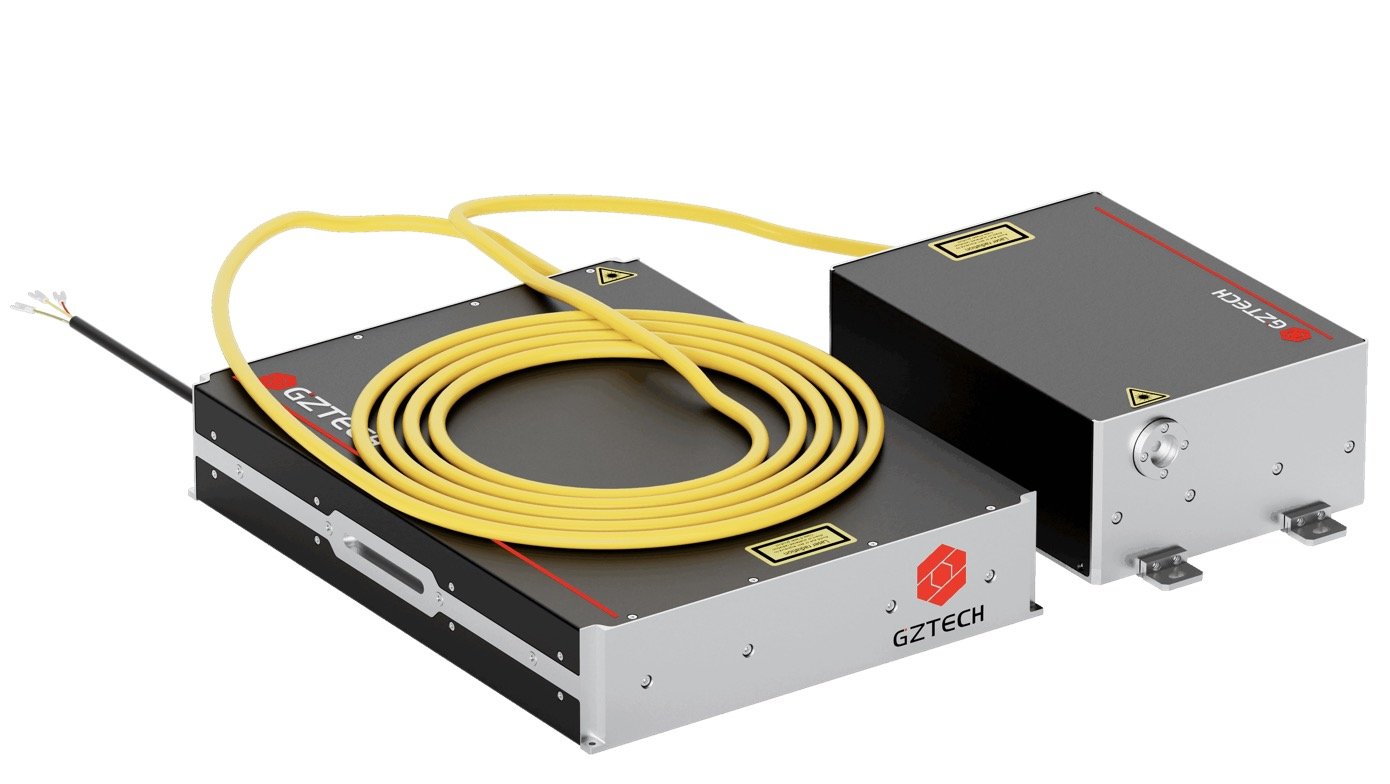

Green Fiber Lasers
Get Instant QuoteProduct Details
Optical characteristics
| No. | Characteristics | Parameter value | Unit |
| 1 | Central wavelength | 532 | nm |
| 2 | Spectral width | < 1 | nm |
| 3 | Maximum single pulse energy | 0.2 | mJ |
| 4 | Maximum peak power | 10 | kW |
| 5 | Average power | 40 | W |
| 6 | Power adjustment range | 0 – 100 | % |
| 7 | Frequency adjustment range | 10 – 100 | kHz |
| 8 | Laser switching ON/OFF time | < 10 | μs |
| 9 | Pulse width | 5 – 10 | ns |
| 10 | Output power instability | < 2% | RMS |
| 11 | Beam quality M2 | < 1.2 | / |
| 12 | Spot ellipticity | > 90 | % |
| 13 | Polarization direction | Linear polarization | / |
| 14 | Anti-high reflection | Yes | / |
| 15 | Beam diameter (1/e2) | 2.5 ± 0.5 | mm |
Electrical characteristics
| No. | Characteristics | Parameter value | Unit |
| 1 | Power supply voltage | 48 | VDC |
| 2 | Working current | < 10 | A |
| 3 | Power consumption | < 480 | W |
| 4 | Recommended power supply | ≥ 600 | W |
Environmental requirements
| No. | Characteristics | Parameter value | Unit |
| 1 | Operating temperature | 5 – 40 | ℃ |
| 2 | Storage temperature | -10 – 60 | ℃ |
| 3 | Cooling method | Water cooling | / |
| 4 | Water cooling temperature | 23 ± 0.1 | ℃ |
| 5 | Cooling water flow rate | > 4 | L/min |
| 6 | Water pipe diameter | 10 | mm |
| 7 | Water chiller cooling capacity | ≥ 500 | W |
Structural characteristics
| No. | Characteristics | Parameter value | Unit |
| 1 | Laser dimension | 752*350*114 | mm3 |
| 2 | Net weight | 28.5 | kg |
The pulse width corresponds to the power reduction frequency point and the maximum single pulse energy
| No. | Pulse width (ns) | Power reduction frequency (kHz) | Upper frequency limit (kHz) | Max single pulse energy (mJ) |
| 1 | 5 | 300 | 1000 | 0.14 |
| 2 | 10 | 200 | 1000 | 0.2 |

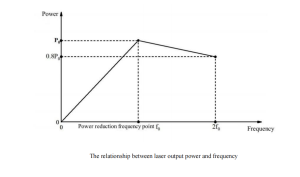

Output power and frequency characteristic curve

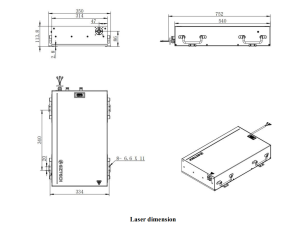

Dimension
