Fiber Optical Cable (QBH) 1080nm 12000W
Get Instant QuoteProduct Details
| Features | Applications |
| High Handling Power | Fiber Lasers |
| Water Cooling System & Compatible Design | Research & Design |
| Cladding Mode Stripper Integrated | Laser Cutting |
| Interlock System Integrated | Laser Cleaning |
| Excellent Environmental Stability and Reliability | Laser Welding |
Specifications
| Parameters | Unit | Values |
| Operating Wavelength | nm | 900～1000（Nominal Center Wavelength 950nm）1050～1110（Nominal Center Wavelength 1080 nm） |
| Typ. Transmission Ratio | – | 99% |
| Min. Transmission Ratio | – | 98% |
| Max. Handling Power (CW) | W | 1000, 2000, 4000 ,6000,8000,12000 or Specify |
| Pulse Power | – | Max. 10KW @10msMax. 50KW @1msMax. 1MW @50ns |
| Loss Power Handling Capability | – | 1KW for 10 min500W Continuously |
| Nominal Beam Pointing Accuracy | deg | 1 |
| Min. Beam Ellipticity | – | 0.92 |
| Max. Fiber Tensile Load | N | 5 |
| Package Material | – | Stainless Steel / Aluminum / Copper |
| Operating Temperature | ℃ | +10 to +50 |
| Storage Temperature | ℃ | -10 to +75 |
| Max. Water Pressure | Bar | 8 |
| Flow of Water | L/min | 1.5-3 |
| Fiber Length ≤15 m | – | The Fiber Length Tolerance is -10cm |
| 15m＜Fiber Length ≤30m | – | The Fiber Length Tolerance is -20cm |
| Jacket Length≤15m | – | The Jacket Length Tolerance is +0.2/-0.1m |
| 15m＜Jacket Length ≤30m | – | The Jacket Length Tolerance is +0.4/-0.2m |
*The actual dimensions may be different from above drawing due to different requirements,please see shipment data sheet.
*For FOC without window, the transmission @635nm is around 80%.
*If the power is up to or more than 2KW,we suggest using some protective hat without window.
*The material must be RoHS compliant.

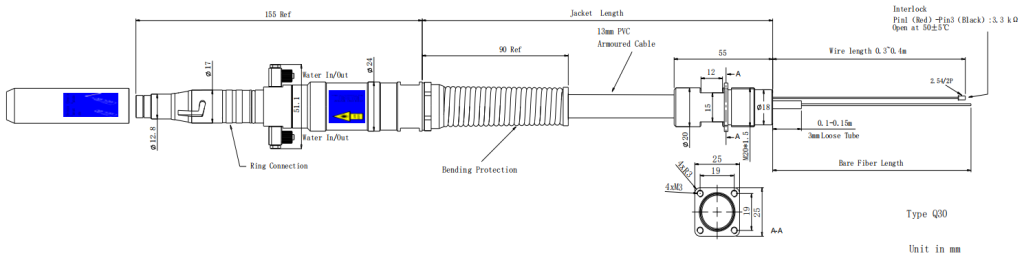

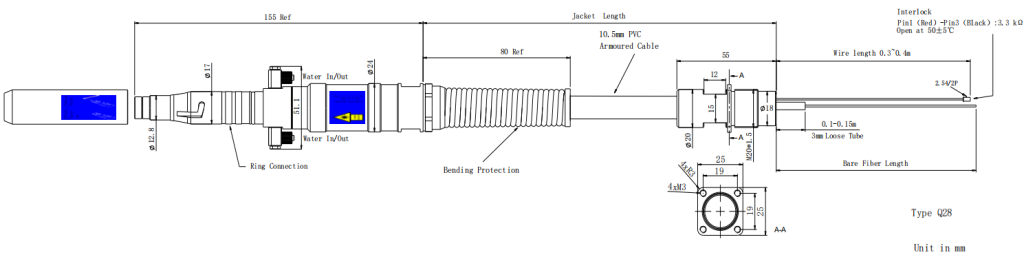

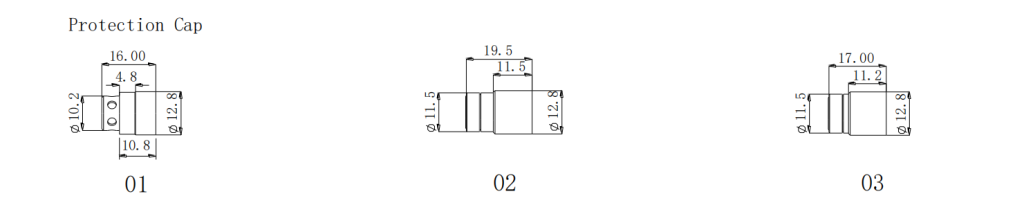

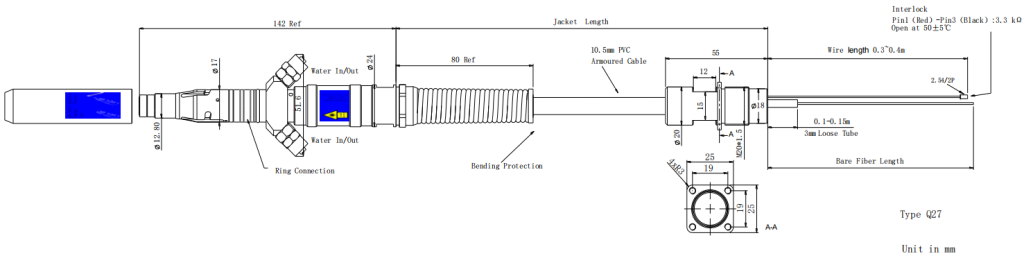

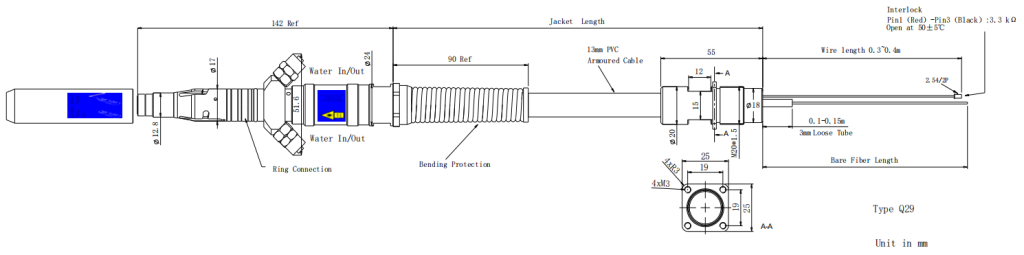

Package Dimensions
Ordering Information
| ①①: Wavelength | ④④: Fiber Type | ⑥⑥: Bare Fiber Length With Loose Tube |
| 91 – 915nm | 01 – Nufern GDF-20/400-M NA0.065 | 01 – 1 m |
| 95 – 950nm | 03 – Nufern BD-S100/120/360-STN NA0.22 | 1.5 – 1.5 m |
| 06 – 1064nm | 08 – Nufern LMA-GDF 25/400-M NA0.065 | 02 – 2 m |
| 08 – 1080nm | 10 – Nufern BD-S50/70/360-STN NA0.22 | SS – Specify |
| SS – Specify | 11 – Coractive DCF-UN 50/400 NA0.12 | |
| 20 – Nufern LMA-GDF- 30/250-M NA0.06 | ⑦: Package Type | |
| ②②: Connector Type | SS – Specify | Q27 – Type Q27 |
| QB – QBH Compatible | Q28 – Type Q28Q29 – Type Q29Q30 – Type Q30 | |
| ⑤⑤: Jacket Length | ⑧⑧: Protection Cap Type | |
| ③: Handling Power | 08 – 8m | 01 – Aluminum Without Window |
| 1000 – 1000W | 10 – 10m | 02 – Aluminum With Window For SM Fiber |
| 2000 – 2000W | 15 – 15m | 03 – Aluminum With Window For MM Fiber |
| 4000 – 4000W | 18 – 18m | SS – Specify |
| 6000 – 6000W | 20 – 20m | |
| 8000 – 8000W | 25 – 25m | ⑨⑨: Water Pipe Length |
| 12000 – 12000W | 30 – 30m | 05 – 5×2m |
| S – Specify | SS – Specify | NN – None |
