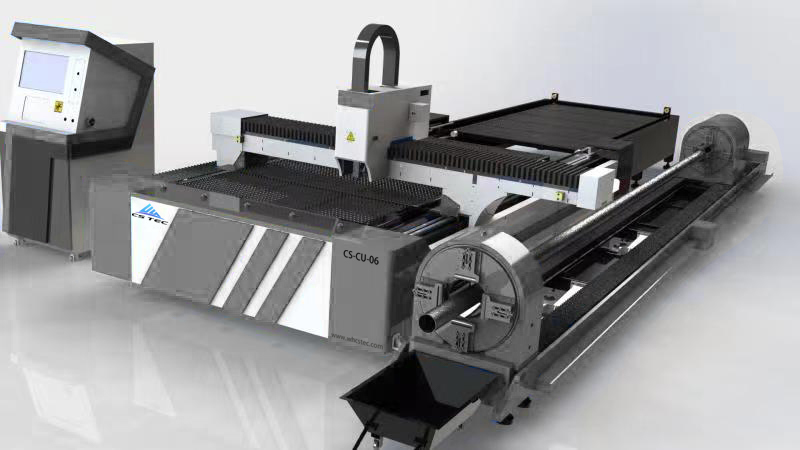

CS-CU-06 Fiber Laser Sheet Tube Cutting Machine
Get Instant QuoteProduct Details

Product features
- Can be used for both Sheet and tube cutting
2.Efficient and stable, time saving and convenient.
3.Save space and cost, high cost-effective
4.Automatic obstacle avoidance, autofocus, automatic corner processing
Technical Parameter
| Processing area | 3000X1500-160/220
|
| X /Y positioning accuracy | ±0.05MM |
| X/Y repeat accuracy | ±0.05MM |
| Maxmium moving speed | 90M/MIN |
| Maximum acceleration | 1.0G |
| laser power | 2000W |
| Pipe processing accuracy | ±0.5MM |
| Optional bevel fuction | N |
Configuration
| Laser head | WSX/Raytool/EC |
| Laser source | GZ/Max/Raycus |
| System | Bochu/Weihong |
| Servo system | Yaskawa/Panasonic |
| Axis guide | OTT/ROUST/ Hiwin |
| Rack | YYC/JT/ leantechnik |
| Speed reducer | Shimpo/Motovario |
Application
All kinds of metal industries, sheet metal, jewelry, glasses, mechanical equipment, lighting, kitchen and bathroom appliances, communications, digital products, electronic components, clocks, computer accessories, instruments and meters, precision instruments, hardware mold, auto parts, craft gifts and other industries

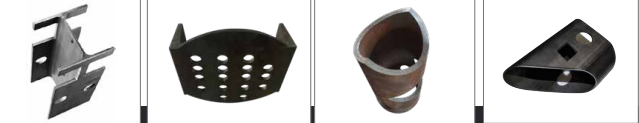

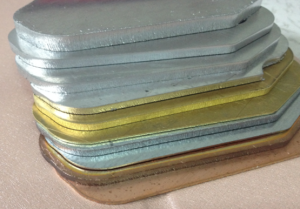

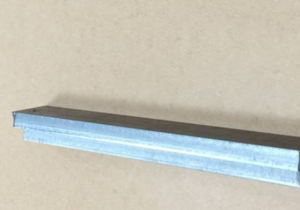

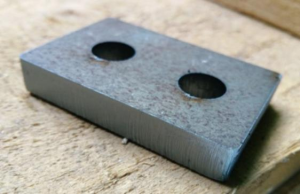

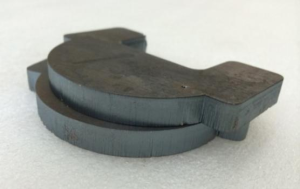

Samples
