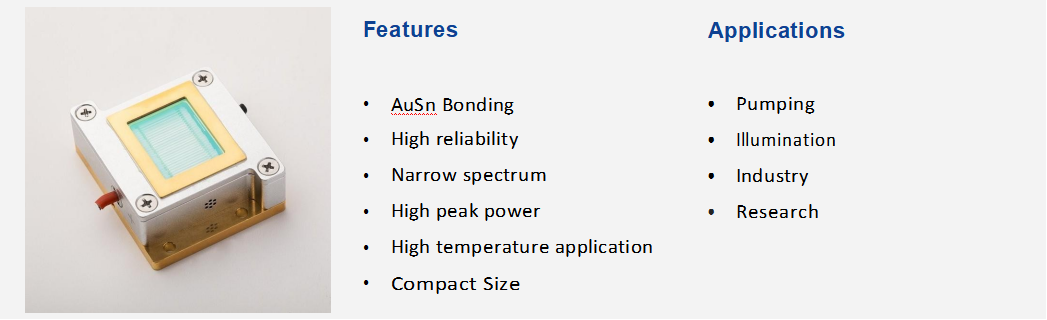

808nm 1500W Vertical Stack Diode Laser
Get Instant QuoteProduct Details

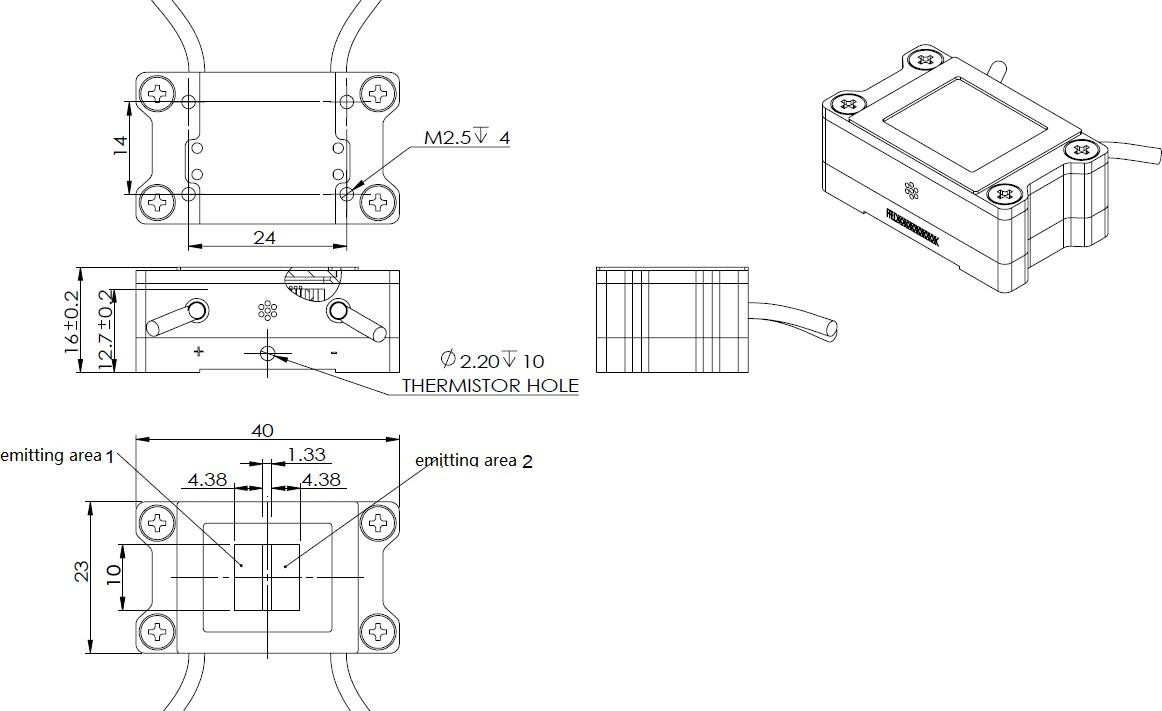

Product Dimensions (mm)
Remark: The structure drawing is for reference only. Please feel free to contact us for any special requirements.
Product Specifications
| Product Code | ||
| Part No. | 14X1-1500-808-(Q) | |
| Test Temperature | 25°C | |
| General Data | Unit | Value |
| Operation Mode | – | QCW |
| Pulse Width | ms | 1 |
| Duty Cycle | % | 0.1 |
| Bar Pitch | mm | 0.73 |
| Optical Data | ||
| Central Wavelength | nm | 808 |
| Wavelength Tolerance | nm | ± 3 |
| Output Power per Bar | W | 108 |
| Number of Bars | – | 14 |
| Spectral Width FWHM | nm | ≤ 5 |
| Spectral Width 90% Energy | nm | ≤ 8 |
| Fast Axis Divergence (FWHM) | ° | 35 (typical) |
| Fast Axis Divergence with FAC (optional) | ° | ≤ 5° |
| Slow Axis Divergence (FWHM) | ° | 8 (typical) |
| Polarization Mode | – | TE |
| Wavelength Temp. Coefficient | nm / °C | ~ 0.28 |
| Electrical Data | ||
| Operation Current | A | ≤ 120 |
| Threshold Current | A | ≤ 30 |
| Operating Voltage per Bar | V | ≤ 2 |
| Slope Efficiency per Bar | W / A | ≥ 1 |
| Power Conversion Efficiency | % | ≥ 50 |
| Thermal Data | ||
| Operating Temperature | °C | -45 ~ 60 |
| Storage Temperature 3 | °C | -55 ~ 85 |
Reduced lifetime if used above nominal operating conditions.
A non-condensing environment is required for storage and operation below ambient dew level.
