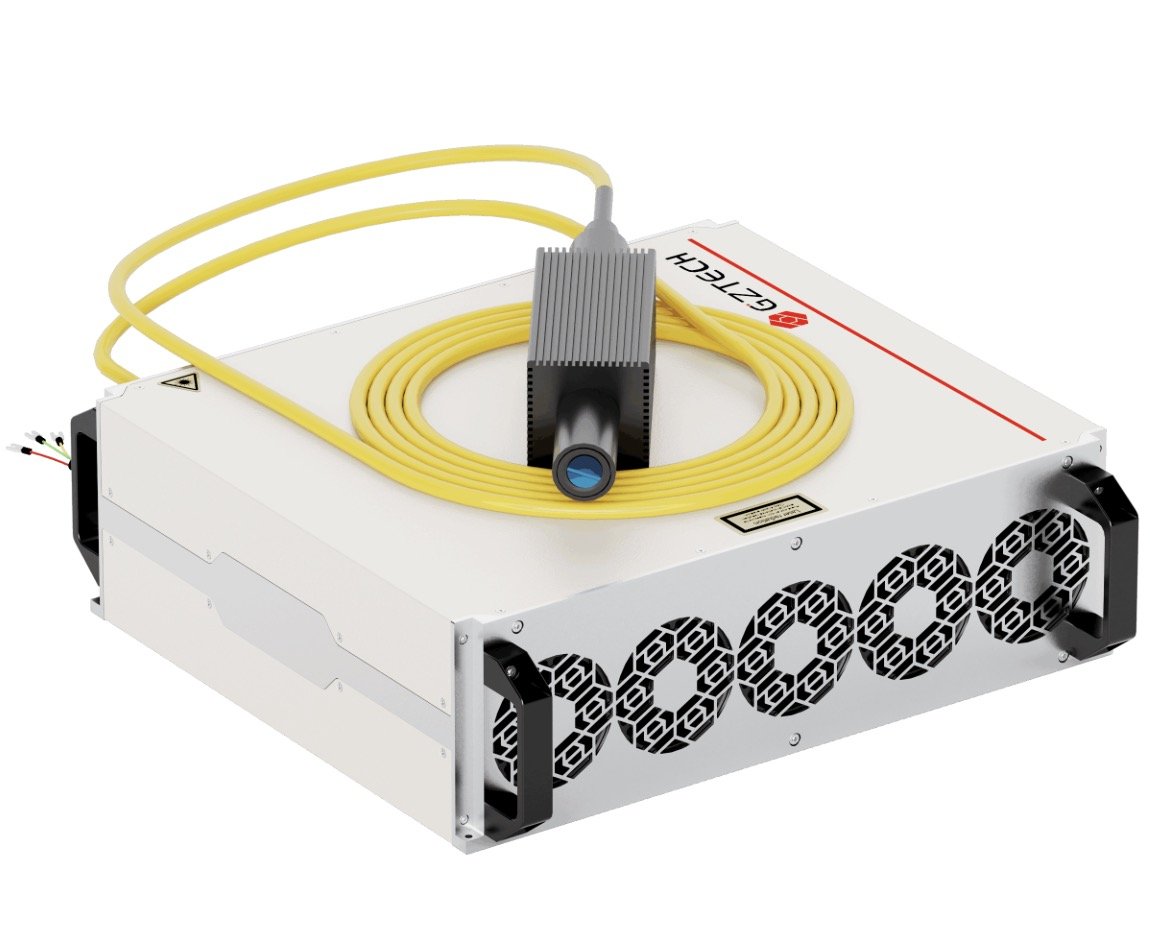

GZTECH GL series pulsed fiber laser sources are with MOPA scheme. Compared with Q-switched laser source, MOPA series laser source have a few optional pulse widths, wider frequency range, higher control precision and superior first pluse. Cost-effectitive, has outstanding advantages in laser deep engraving, jewelry cutting applications.
50W/60W/80W/100W/200W
Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 1060-1080 | nm |
| 2 | Spectral width(FWHM) | < 15 | nm |
| 3 | Maximum pulse energy | 1.5 | mJ |
| 4 | Output Power | 100 | W |
| 5 | Power adjustment range | 0-100 | % |
| 6 | Frequency adjustment range | 1-1000 | kHz |
| 7 | On/off light response time | < 20 | μs |
| 8 | Pulse Width | 150-300 | ns |
| 9 | Output power stability | < 5 | % |
| 10 | Beam quality M² | < 1.8 | / |
| 11 | Polarization direction | Random | / |
| 12 | Resist high reaction | Yes | / |
| 13 | Indication (red) optical power | 0.3-2 | mW |
| 14 | Collimated Beam diameter (4σ) | 7±1 | mm |
| 15 | Delivery cable length | 3 | m |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 16 | Supply voltage | 48 | V |
| 17 | Working current | < 10 | A |
| 18 | Power consumption | <480 | W |
| 19 | Recommended power supply | ≥600 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 20 | Working temperature | 0-40 | ℃ |
| 21 | Storage temperature | -10-60 | ℃ |
| 22 | Cooling Method | Air cooling | / |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 23 | Laser dimension | 360*301*114 | mm³ |
| 24 | Isolator size | 283.5*50*50 | mm³ |
| 25 | Net weight | <17 | kg |
