Product Details

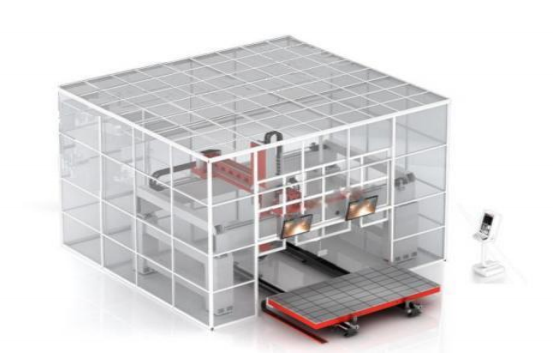

It is mainly used for cutting plane and three-dimensional molded parts of metal materials such as low-carbon steel, stainless steel, titanium alloy, and high-temperature alloy. It is characterized by good dynamic performance, high speed, high precision, high cost performance, and good openness. It can meet the processing needs of plane cutting and three-dimensional workpiece cutting, trimming, etc.

• Processing Capability (Equipped with 3000W fiber laser)


  Material	(Maximum thickness ) ( mm )
  Carbon Steel	20
  Stainless steel	12
  Aluminum Alloy	15

• Product Parameters


  number	Parameter
  1	Processing area (length × width)	1500mm×3000mm
  	3D cutting range	2400x1000x650mm
  2	X Axis travel	300mm
  3	Y Axis travel	1500mm
  4	Z Axis travel	700mm
  5	A Axis travel	± 135 °
  6	C Axis travel	±360 °
  7	U Axis travel	± 12mm
  5	X , Y 、 Z- axis positioning accuracy	± 0.03 mm
  6	X , Y , Z axis repeat positioning accuracy	± 0.02 mm
  7	A 、 C- axis positioning accuracy	±0.015 °
  8	A , C- axis repeat positioning accuracy	±0,005 °
  7	X , Y 、 Z axis maximum positioning speed	60m/min
  9	X , Y 、 Maximum composite speed of Z axis	103m/min
  10	X , Y 、 Z- axis maximum acceleration	05g
  11	X , Y 、 Maximum synthetic acceleration of Z axis	0.85g
  12	A 、 Maximum positioning speed of C axis	60r/min
  13	A 、 Maximum acceleration of C axis	60rad/s2
  14	power supply:	3 -phase 380V50Hz
  15	Rated input power	80KVA
  16	Protection level	IP54
  17	Host weight	15000kg
  18	Land area  long x Width x high	9000x8500x4000mm

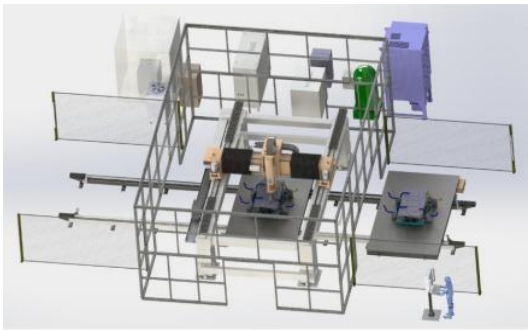

• Configuration List


  N.O	Product Name	quantity	Manufacturer name and country of origin
  Laser
  1	3000W Fiber laser generator	1 tower	Max(optional raycus)
  Cutting head
  1	Laser cutting head RC304C	1 indivual	HAN’S LASER
  Machine tool platform
  1	Machine tool platforms and accessories	1 tower	CS
  2	rack	1 set	Taiwan YYC
  3	Linear Guides	1 set	Taiwan Hiwin
  4	Machine tool accessories	1 set	CS
  CNC machine software system
  1	CNC system	1 set	New Generation
  2	AC servo motor and driver	4 set	Japan Huichuan
  3	twenty four Color display	1 set	Guanjie
  4	Reducer	1 set	Titanium
  5	Laser Cutting Programming Software	1 set	TEBIS
  Standard accessories
  1	Cutting table	1 set	CS (double cutting table optional)
  2	Chiller	1 set	Wuhan Hanli
  3	Exhaust dust removal equipment	1 set	China Starlight (optional)
  4	High pressure air filtration equipment	1 set	CS
  Electrical Parts
  1	Electrical components	1 set	Schneider
  2	Gas path	1 Item	Japan SMC
  User-Supplied Device
  1	Cutting gas	1 set	Oxygen, high pressure nitrogen
  2	Regulated power supply 30KVA	1 set	Shanghai Wenfeng
  3	Air compressor ( 1.6MPa, 22KW )	1 set	GUNAIYU
