30W/60W Portable CO2 Laser Marking Machine
Get Instant QuoteProduct Details
The CO2 Laser Marking Machine is an upgraded product of cutting-edge technology .It perfectly shows the technological concept of Mac .At the same time, it’s a revolutionary creation in laser marking system of working speed, high-definition resolution, high intelligence.
Specification
| Laser type | CO2 laser |
| Laser Sourse | DAWEI(optional) |
| Laser power | 35W/40W/60W(optional) |
| Laser wavelength | 10.6μm |
| Marking range | 110*110mm(optional) |
| Beam quality | – |
| Marking speed | ≤7000mm/s |
| Repeat frequency | 0-25KHZ |
| Repeat precision | ±0.015mm |
| Voltage | AC 220V,50Hz 5A(optional) |
| Laser source lifespan | – |
| Cooling mode | Air cooling |
| Minimum characters | 0.15mm |
| Marking depth | ≤0.2mm |
| Supported format | DWG、DFX、BMP、JPG、PNG、TIF、PCX、TAG、GIF、PLT etc. All the characters/ fonts of WINDOWS operating system |
| Control interface | Standard USB |

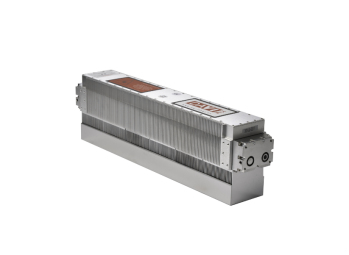

D60 Air-cooled CO2 Laser
| D60 Air-cooled CO2 Laser | |||
 | |||
| SystemPerformanceIndicators | Model | D60I air cooling | D60 air cooling |
| Wave length | 9.3±0.1μm | 10.6±0.1μm | |
| Continuous Rated Output Power | ≥40W | ≥60W | |
| Power Stability | ±5% | ±5% | |
| Mode Quality | M2<1.2 | ||
| Beam Diameter | 1.8±0.2mm | ||
| Beam divergence angle | 7.5±0.5m full-angle radian | ||
| Polarization | Linear polarization (>100:1) parallel to the width direction | ||
| Operating Frequency and Duty Cycle | 0～25KHZ,0～100%DC | ||
| specificationandconditions of use conditions | Weight | 10.0kg | 10.0kg |
| Dimension L*W*H | 580×92.5×142mm | 580×92.5×104mm | |
| Input Voltage | 48VDC ±2% range, maximum average current 25A | ||
| Thermal load | <1200W | ||
| Maximum Case Temperature | <60℃(140F) | ||
| Ambient temperature during operation | 5℃~40℃(41″F～104″F) | ||
| Working height | <2000m(6,500ft.) | ||
| Humidity | non-condensing | ||
| Shipping and storage environment | —10℃~60℃(14F～140F),non-condensing | ||
| The laser power is measured under the condition that the laser temperature is 25℃, and the output power decreases by about 1% for every 1℃ rise above 25℃.Definition of Stability: (Pmax-Pmin)/(2Pmax), (2Pmax), (2Pmax), (2Pmax), (2Pmax), (2Pmax), (2Pmax).Stability test conditions: power-on warm-up 10 minutes, constant control duty cycle, under normal operating conditions. | |||
Application samples
