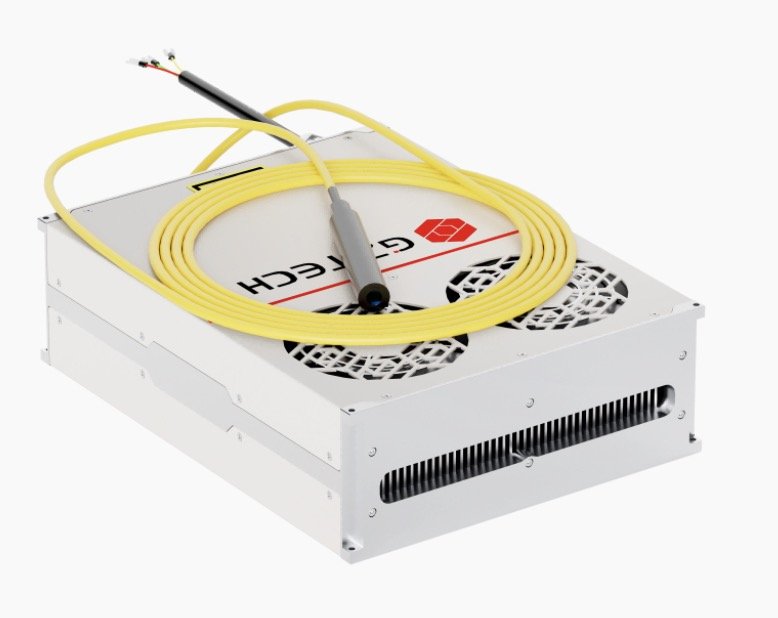

GZTECH GMC cleaning series laser sources have built-in isolators and small QCS output, which greatly reduces the volume and weight of the cleaning head, while maintaining the excellent anti-high-reflection performance of the laser, and has outstanding advantages in laser rust removal, paint removal, and other cleaning applications.
Optical characteristics
No. | Characteristics | Parameter value | Unit |
| 1 | Central wavelength | 1060-1080 | nm |
| 2 | Spectral width @3dB | <5 | nm |
| 3 | Maximum pulse energy | 1.5@135kHz | mJ |
| 4 | Output power | 200 | W |
| 5 | Power adjustment range | 0-100 | % |
| 6 | Frequency adjustment range | 5-200 | kHz |
| 7 | Laser switching ON/OFF time | <20 | μs |
| 8 | Pulse width | 150-190@135kHz | ns |
| 9 | Output power instability | <5 | % |
| 10 | Beam quality M² | <1.8 | / |
| 11 | Polarization direction | Random | / |
| 12 | Anti-high reflection | Yes | / |
| 13 | Indicator red light | 0.3-2 | mW |
| 14 | Beam diameter (4σ) | 5-7 | mm |
| 15 | Delivery cable length | 5 | m |
Electrical characteristics
No. | Characteristics | Parameter value | Unit |
16 | Power supply voltage | 48 | VDC |
17 | Working current | <16 | A |
18 | Power consumption | <748 | W |
| 19 | Recommended power supply | ≥1 | kW |
Environmental requirements
No. | Characteristics | Parameter value | Unit |
20 | Operating temperature | 0 – 40 | ℃ |
| 21 | Storage temperature | -10 – 60 | ℃ |
| 22 | Cooling method | Air cooling | / |
Structural characteristics
No. | Characteristics | Parameter value | Unit |
| 23 | Laser dimension | 345*265*100 | mm |
| 24 | Isolator dimension | Φ17*153 | mm |
| 25 | Net weight | <9 | kg |
