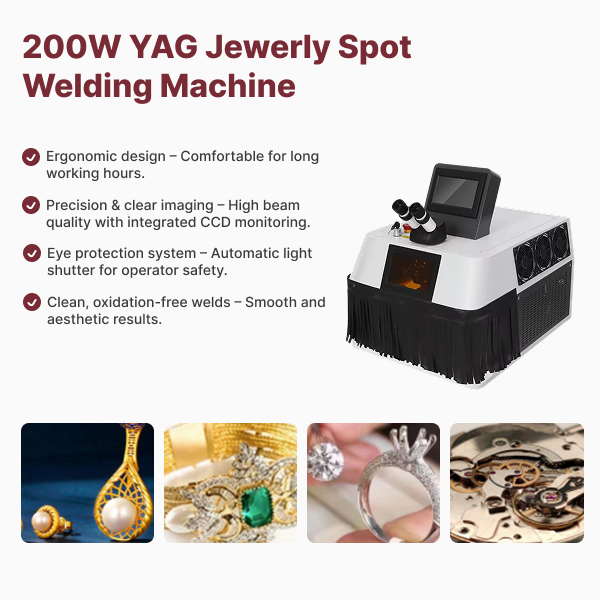

Mode:CS-JD-PT200

Advantages:

Low heat affected zone, minimal deformation
Clean welds, no oxidation or discoloration
CCD + microscope for clear, easy operation
Eye protection system + shielding gas for safer welding
Stable beam with ceramic cavity design

Applications:

Jewelry · Precision Hardware · Watches · Electronics · 3C Components · Crafts

Materials

Stainless steel · Gold · Silver · Copper · K-gold and other alloys

Spec:

Applications:

Dimensions:

Why Choose Our YAG Jewelry Laser Welder?

Professional Laser Solution for High-Precision Jewelry Repair

In the jewelry industry, every detail matters.

Our YAG Jewelry Laser Welding Machine is designed for professional jewelers who require high precision, stable performance, and reliable operation for repairing gold, silver, platinum, and other precious metal jewelry.

From delicate chain repair to prong restoration and filling tiny holes, our laser welding technology helps jewelers achieve cleaner and more accurate results.

1. Real Laser Power Output – No False Specifications

Unlike many machines on the market that use exaggerated power labels, our laser welders focus on real output performance.

For example:

150W Model

• Rated power: 150W
• Actual output: approximately 170–180W

Higher energy output ensures:

• Stronger welding capability
• Better penetration
• More stable performance

2. Dual Viewing System for Precise Welding

Microscope + CCD Dual Display

Our machine integrates:

✅ 10X optical microscope
✅ CCD camera display system

Operators can:

• Observe welding points clearly
• Switch between microscope and CCD view
• Adjust parameters directly through CCD interface

This design improves efficiency and reduces operation errors.

3. Minimal Heat Affected Zone – Protect Valuable Jewelry

Traditional welding methods may cause:

• Heat deformation
• Surface damage
• Color changes
• Difficult post-processing

Our YAG laser welding technology provides:

✅ Precise energy control
✅ Small heat affected area
✅ Less thermal damage

Perfect for:

💍 Gold jewelry
💎 Silver jewelry
⌚ Watches
🔩 Precision metal parts

4. Stable Optical Structure – Built for Long-Term Accuracy

Different from low-cost machines using simple profile structures, our optical system adopts:

✅ Precision-machined components
✅ Fixed positioning design
✅ Stable optical path structure

Advantages:

• No optical path shifting
• Better welding consistency
• Easier maintenance

5. Powerful Cooling System for Stable Operation

A reliable cooling system is essential for laser stability.

Our machine features:

• 85W DC water pump
• Large copper heat exchanger
• High-speed cooling fans
• Full water-cooled laser cavity

Cooling capacity:
Approx. 825W/hour

Benefits:

• Stable laser output
• Longer component lifetime
• Continuous working capability

6. Professional Laser Cavity Design

The machine uses:

Full Water-Cooled Morgan Ceramic Cavity

Advantages:

• Excellent thermal stability
• High laser conversion efficiency
• Long service life
• Reliable performance

7. Smart & User-Friendly Operation

Designed for jewelry professionals:

✔ Simple human-machine interface
✔ Real-time water temperature monitoring
✔ Protection alarm system
✔ Adjustable LCD shutter (0–100%)
✔ Pulse width adjustment (1–15ms)

Even new operators can quickly master the machine.

8. Flexible Gas Protection System

For applications requiring shielding protection:

The machine includes:

• Argon gas inlet
• Argon gas control switch

Compatible with:

• Dry argon gas
• Nitrogen gas

Helping achieve cleaner welding results.

9. Easy Maintenance & Reliable After-Sales Support

We understand that production downtime costs money.

Therefore, we provide:

✔ Remote technical support
✔ Troubleshooting guidance videos
✔ Spare parts supply
✔ Professional maintenance support

Instead of simply providing a complicated circuit diagram, our engineers provide practical step-by-step solutions to quickly identify and solve problems.

10. Designed for Global Jewelry Markets

Our YAG laser welders are widely used for:

• Jewelry repair shops
• Jewelry manufacturers
• Gold and silver workshops
• Watch repair centers
• Precision metal processing

Suitable for customers who value:

⭐ Quality
⭐ Efficiency
⭐ Long-term reliability

Upgrade Your Jewelry Workshop with Laser Precision

With higher accuracy, stable performance, and professional support, our YAG Jewelry Laser Welding Machine helps jewelers create better results and improve productivity.

CS Tec – Your Reliable Laser Solution Partner
