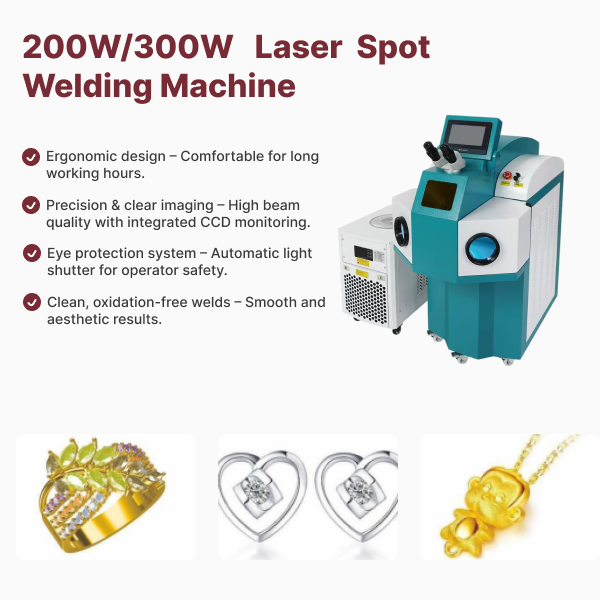

200W/300W Laser Spot Welding Machine
Get Instant QuoteProduct Details
Advantages:
Long-life ceramic cavity
Adjustable welding parameters
Fast, precise, low deformation
Small heat affected zone, clean welds
Crosshair aiming + shielding gas for anti-oxidation results
Applications:
Gold & silver jewelry repair (hole filling, porosity spot welding)
Micro-precision spot welding in jewelry
Watches, eyeglasses,
Dental prosthetics..
Spec:
| Model | CS-JD-LS200 |
| Laser type | ND:YAG |
| Adjustable current | 60A-200A |
| Wavelength | 1064nm |
| Maximum monopulse energy | 100J |
| Pulse frequency | 1.0-50Hz |
| Pulse width | 0.1-20ms |
| Spot size adjustable range | 0.2-3mm |
| Laser output power | 200W |
| Peak power | 6Kw |
| Control system | Single chip microcomputer |
| Equipment power supply | AC220V+5%, 50Hz, 30A or AC380V+5% |
| Ambient temperature | ≤45°C |
| Cooling mode | Water-cooled |
| Observation mode | Microscope /CCD |
| Dimension(L*W*H) | 1040*560*1260mm;680x360x590mm |
| Weight | 110Kg；39Kg |
