20/30/50/100W Portable Fiber Laser Marking Machine

20/30/50/100W Portable Fiber Laser Marking Machine

Product Details

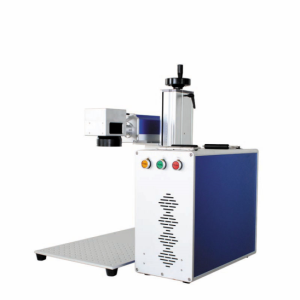

Portable Fiber Laser Marking Machine

Product Introduction

This portable Laser Marking Machine is an upgraded product of cutting-edge technology .It perfectly shows the technological concept of Mac .At the same time, it’s a revolutionary creation in laser marking system of working speed, high-definition resolution, high intelligence.

Product Features

(1) Latest design, the most advance solid fiber laser, high quality laser beam.

(2) Fast working speed, high efficiency.

(3) Integrated design, small bulk, suitable for various occasions.

(4) Maintenance-free, no consumption, energy-saving power.

(5) Perfect marking logo, never fade.

Advantages

Automated intelligent processing
high performance, highly efficient and stable marking.
Fast marking speed and high efficiency, save human cost.
Eco-friendly, no pollution of consumables.

Specification

Laser source	Raycus/JPT/MAX
Power	20W/30W/50W/100W
Laser wavelength	1050-1070nm
Repetition frequency	20-80KHZ
TEMOO Gaussian beam	<2
Marking range	100100mm 200200mm 300*300mm
Marking depth	≤0.4mm
Marking speed	≤10000mm/s
Minimum linewidth	0.01mm
Minimum character	0.15mm
Repeat accuracy	±0.002
Power supply	110/220V,50/60Hz
Power consumption	500W
Total weight	About 75kg
Operating system	Win 7 32bits
Cooling	Built- in air cooling
Control interface	Standard USB
File format	All the characters/ fonts of WINDOWS operating system
Laser device type	Impulse fiber laser device
Working life	100,000 hours

Configuration

Laser source	Raycus/JPT/MAX
Focusing system	Double red light focusing system
Marking indicating system	Built-in contour, size, orientation, position indicator
Lens system	Import wavelength, a full range of chipsets
Cooling system	Air cooling
Laser galvo	Integrated optical bench design, professional digital galvanometer, high speed galvo
Professional laser control card	JCZ V4.0 / EZCAD
Bracket	Built-in lifting bracket

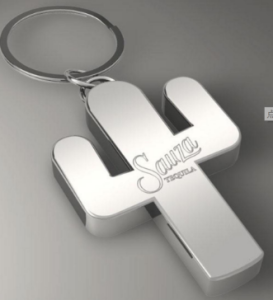

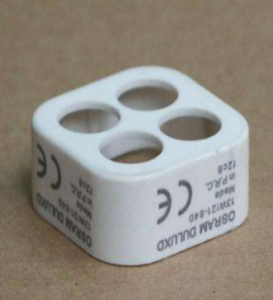

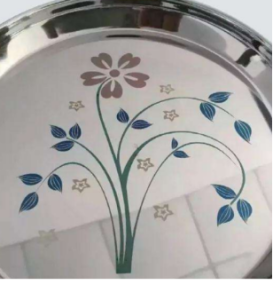

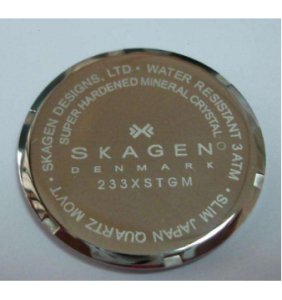

Application

Widely used in integrated circuit chips, computer accessories, industrial bearings, clocks and watches, electronic and communication products, aerospace components, all kinds of auto parts, household appliances, hardware tools, dies, wire and cable, food packaging, jewelry, tobacco.
