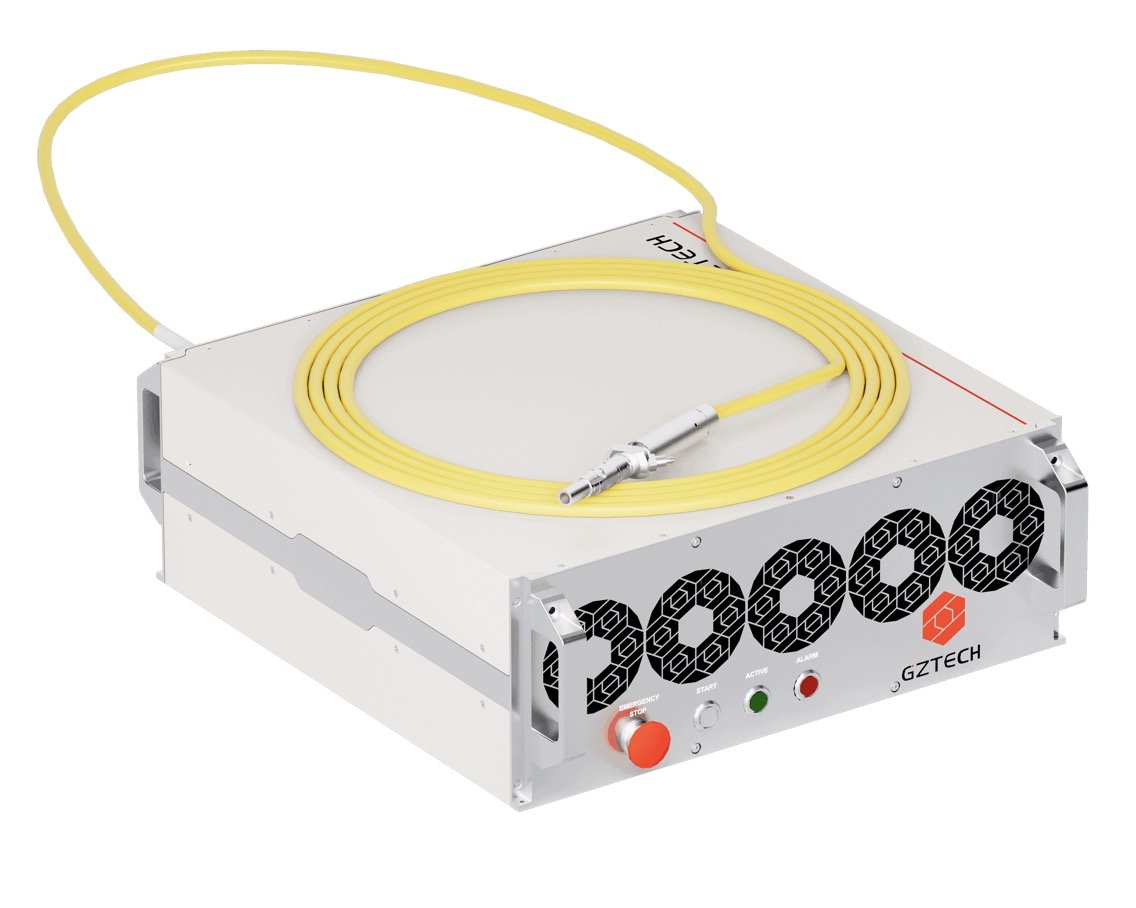

GZTECH 150W air-cooled QCW products, single-mode and multi-mode optional, suitable for precision welding and cutting applications of metals/ceramics and other materials
Optical characteristics
| N | Characteristics | Parameter value | Unit |
| 1 | Center wavelength | 1060-1080 | nm |
| 2 | Spectral width@3dB | < 5 | nm |
| 3 | Operation Mode | Pulsed / CW | / |
| 4 | Max. Avg. Power CW Mode | 300 | W |
| 5 | Max. Avg. Power Pulsed Mode | 150 | W |
| 6 | Max. peak power | 1500 | W |
| 7 | Max. single pulse energy | 15 | J |
| 8 | Power Turning Range | 10-100 | % |
| 9 | Pulse Width | 0.02-50 | ms |
| 10 | Modulation frequency | 0-5 | kHz |
| 11 | Duty | ≤50 | % |
| 12 | On/off light response time | <100 | us |
| 13 | Output Power Instability | <5 | % |
| 14 | Beam Quality (M²) | <1.2 | / |
| 15 | Polarization direction | Random | / |
| 16 | Indication (red) optical power | 0.3-2 | mW |
| 17 | Output method | QBH(QCS optional) | / |
| 18 | QBH divergence angle | <120 | mrad |
| 19 | QCS Collimated Beam diameter (4σ) | 6±0.5 | mm |
| 20 | Delivery cable length | 5 | m |
| 21 | Output fiber core diameter | 14 | μm |
Electrical characteristics
| N | Characteristics | Parameter value | Unit |
| 22 | Analog Power Control | 0-10 | V |
| 23 | Laser supply voltage | 220 | VAC |
| 24 | Laser Operating Current | <10 | A |
| 25 | Laser power consumption | <2200 | W |
Environmental requirements
| N | Characteristics | Parameter value | Unit |
| 26 | Working temperature | 0-40 | ℃ |
| 27 | Storage temperature | -10-60 | ℃ |
| 28 | Cooling Method | Air cooling | / |
Structural characteristics
| N | Characteristics | Parameter value | Unit |
| 29 | Laser Color | Red | / |
| 30 | Laser dimension | 627*481*164 | mm³ |
| 31 | QBH dimension | Standard | / |
| 32 | QCS dimension | Φ24*190 (optional) | mm |
| 33 | Net weight | <45 | kg |
