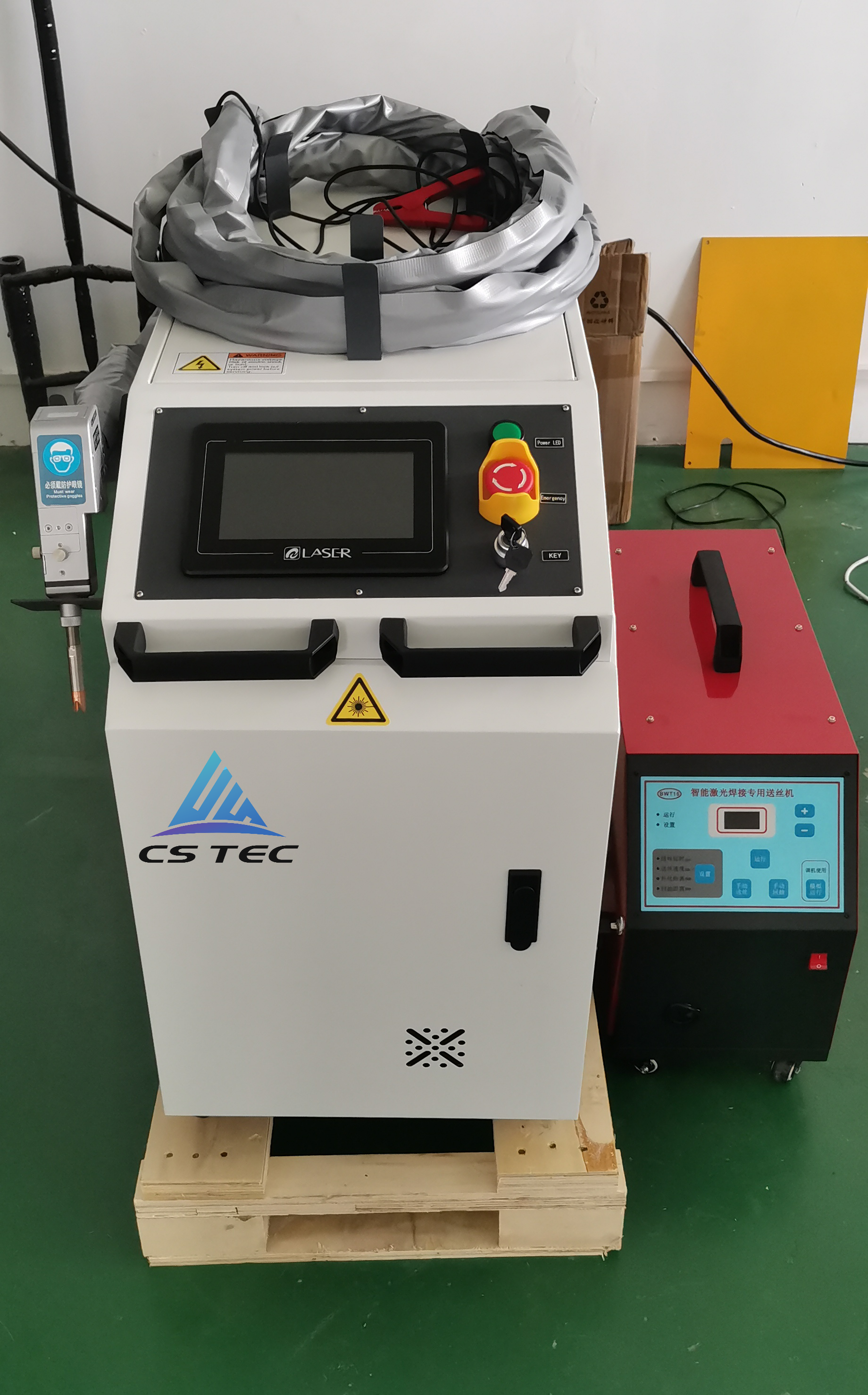

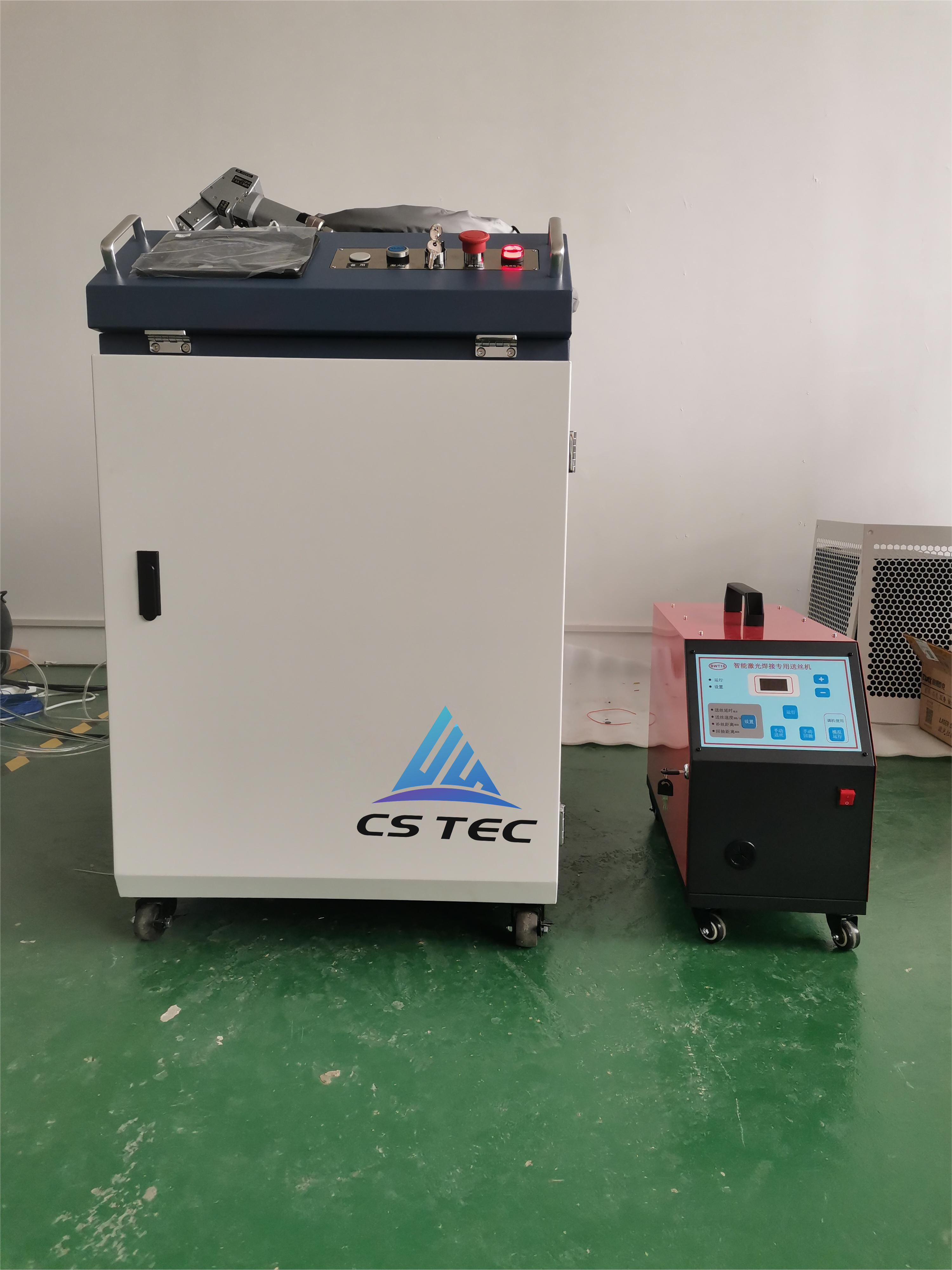

1000W/1500W/2000W/3000W 3 in 1 CW Water-cooling Handheld Laser Welding Machine
Get Instant QuoteProduct Details
Product Features
What is a Portable Fiber Laser Welding Machine.
A portable handheld fiber laser welding machine is a type of welding equipment that uses a high-energy density laser beam as the heat source to melt and join materials together. The “fiber laser” part refers to the specific type of laser used, which is generated within an optical fiber and then focused onto the workpiece.
These machines are portable and handheld, which means they can be easily moved around a workspace and operated by hand, allowing for a greater degree of flexibility in where and how they’re used compared to larger, stationary welding machines.
Here are some key features of these devices:
1. Compact and Portable: Being handheld, these devices are usually compact and lightweight, enabling easy transport and use in various locations.
2. Versatile: They can be used for a wide variety of materials including stainless steel, aluminum, copper, gold, silver,
titanium, and their alloys.
3. High Precision: The fiber laser offers high precision and control, capable of producing high-quality welds with minimal heat distortion.
4. Efficient and Economical: Fiber lasers have high electrical-to-optical conversion efficiency, making them energy-saving and cost-effective in the long run.
5. Easy to Operate: They often come with user-friendly interfaces and automatic functions, simplifying the welding process even for less experienced users.
These machines are portable and handheld, which means they can be easily moved around a workspace and operated by hand, allowing for a greater degree of flexibility in where and how they’re used compared to larger, stationary welding machines.
Here are some key features of these devices:
1. Compact and Portable: Being handheld, these devices are usually compact and lightweight, enabling easy transport and use in various locations.
2. Versatile: They can be used for a wide variety of materials including stainless steel, aluminum, copper, gold, silver,
titanium, and their alloys.
3. High Precision: The fiber laser offers high precision and control, capable of producing high-quality welds with minimal heat distortion.
4. Efficient and Economical: Fiber lasers have high electrical-to-optical conversion efficiency, making them energy-saving and cost-effective in the long run.
5. Easy to Operate: They often come with user-friendly interfaces and automatic functions, simplifying the welding process even for less experienced users.
Products Description
Product Name | Handheld Laser Welding Machine | |||
Application | Handheld Metal Welding | |||
Laser Power | 1000W 2000W 1500W 3000W (optional) | |||
Laser brand | Raycus/JPT/MAX/Optional | |||
Warranty | 1 year | |||
Wavelength | 1080nm | |||
Minimum welding pool | 0.1mm | |||
Spot size | 0.2-5.0mm/1.5mm | |||
Adjusted spot range | 0.1-3.0mm | |||
Pulse width | 0.1-20ms | |||
Laser pulse Frequency | 1-20HZ | |||
Fiber length | 8-10m | |||
Electric power | <6kw | |||
Welding speed range | 0-120mm/s | |||
Welding gap | ≤0.5mm | |||
Cooling method | Water cooling | |||
Welding thickness | 0.5-3mm | |||
Working voltage | 220V | |||
Collimation Length | F=50mm | |||
