Core takeaway: The main advantage of a MOPA fiber laser is not simply higher power or a wider frequency range. It is the ability to control pulse width more independently, giving process engineers another way to adjust peak power, thermal input, surface interaction, and material response without changing the laser hardware.
This is why a MOPA source can handle applications that require very different energy-delivery strategies, including black marking on anodized aluminum, stainless-steel color marking, low-heat plastic marking, coating removal, fine engraving, and selected micromachining processes.
When selecting an industrial fiber laser source for a marking system, the useful question is therefore not simply “MOPA or normal fiber laser?” It is:
Does the process need independent control over how much energy is delivered in each pulse and how long that energy interacts with the material?
What Is a MOPA Fiber Laser?
MOPA stands for Master Oscillator Power Amplifier. In this architecture, a seed laser generates the initial optical pulse and one or more fiber-amplifier stages increase the output power before the beam is delivered to the processing system.
The architecture itself is not valuable merely because it contains separate oscillator and amplifier stages. Its practical advantage in marking applications is the flexibility it can provide over pulse parameters.
Modern industrial MOPA sources can offer control over:
- Average output power
- Pulse repetition frequency
- Pulse width
- Pulse energy
- Peak power
JPT’s current M7 MOPA platform, for example, is designed around independently adjustable pulse width and frequency across multiple power classes. That flexibility allows one source architecture to be adapted to marking, engraving, color processing, and precision surface treatment rather than being optimized around one fixed pulse behavior.
How Is a MOPA Fiber Laser Different From a Conventional Q-Switched Fiber Laser?
The most important difference is pulse control. A conventional Q-switched fiber laser normally offers strong, simple, and cost-effective pulsed marking performance, but its pulse duration is usually much less flexible and may change together with frequency or other source operating conditions.
A MOPA laser gives the process engineer much greater freedom to adjust pulse duration independently.
| Characteristic | Conventional Q-Switched Fiber Laser | MOPA Fiber Laser |
|---|---|---|
| Average power control | Yes | Yes |
| Frequency adjustment | Yes | Yes, usually wider range |
| Pulse-width control | Limited / source-dependent | Wide and independently adjustable on suitable models |
| Peak-power flexibility | More constrained | Greater process-control range |
| Thermal control | Good for general marking | More flexible for heat-sensitive processes |
| Stainless-steel color marking | Limited process window | Strong application fit |
| Anodized aluminum black marking | Possible on some materials | Greater process flexibility |
| Plastic marking | Material-dependent | Better flexibility across formulations |
| General metal engraving | Excellent | Excellent, with wider process range |
| Cost | Generally lower | Generally higher |
This does not make MOPA automatically better. If the application is straightforward metal serial-number marking or conventional engraving, a Q-switched source may deliver the required result at lower cost and with simpler parameter development.
Why Does Pulse Width Matter So Much?
Pulse width determines how long the laser delivers energy during each individual pulse. Changing pulse duration changes how concentrated that energy is in time and therefore changes the peak power and thermal response of the material.
A simplified relationship is:
Peak power ≈ pulse energy ÷ pulse duration
For the same pulse energy:
- Shorter pulse: energy is delivered in less time, producing higher peak power.
- Longer pulse: energy is spread over more time, producing lower peak power and different heat accumulation.
This is why pulse width should not be thought of as merely another number in the marking software. It changes the nature of the laser-material interaction.
What Happens When You Use a Shorter Pulse Width?
Shorter pulses concentrate energy into a shorter time interval. This can increase peak intensity and produce stronger localized material modification while reducing the time available for heat to spread into surrounding material.
Depending on the material and other parameters, this can help with:
- Fine ablation
- Coating removal
- Heat-sensitive plastic marking
- Sharp edge definition
- Reduced surrounding discoloration
- Thin-film processing
However, a shorter pulse is not automatically better. High peak power can create rough ablation, micro-spatter, excessive material removal, or other undesirable effects if the process window is poorly matched.
What Happens When You Use a Longer Pulse Width?
A longer pulse delivers energy over a longer period and changes both peak power and heat accumulation. For some materials, this produces a more controlled thermal surface response rather than aggressive ablation.
Longer pulse settings may be useful when the process needs:
- Controlled oxidation
- Surface color formation
- Smooth thermal marking
- Different engraving morphology
- Greater heat accumulation without extreme peak intensity
This is particularly important in processes where the target is not simply to remove material.

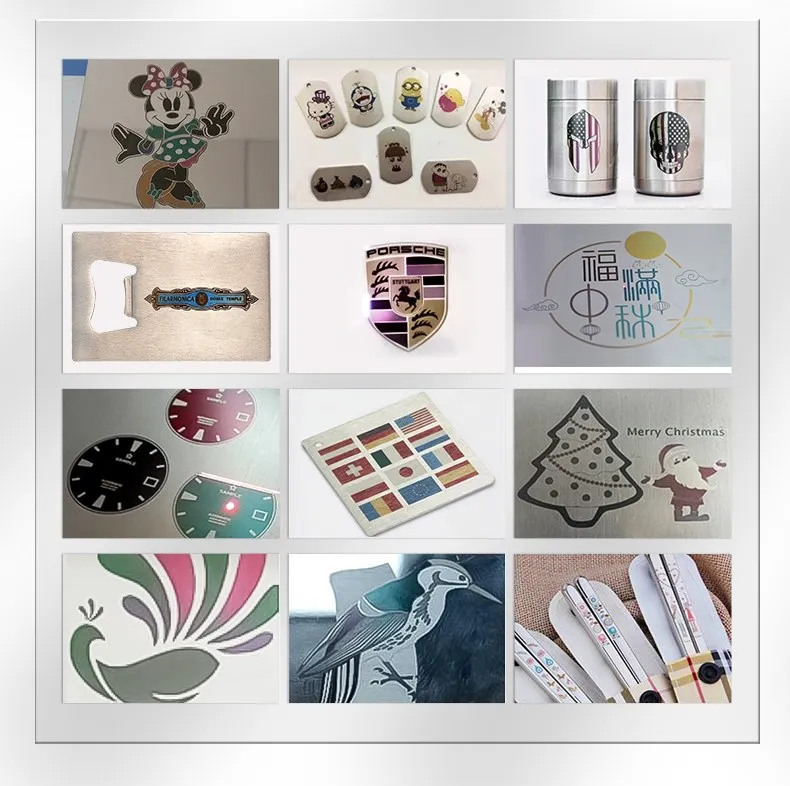

Why Is MOPA Better for Stainless-Steel Color Marking?
Stainless-steel color marking depends on controlled surface modification rather than simply engraving a groove into the metal. Laser parameters create and modify thin oxide layers whose optical interference can produce different visible colors.
The final result depends on a narrow combination of:
- Pulse width
- Frequency
- Average power
- Marking speed
- Hatch spacing
- Focus
- Surface condition
MOPA sources are useful here because pulse duration provides another independent control variable for managing thermal accumulation.
JPT lists stainless-steel coloring as a standard application of its MOPA fiber-laser platforms, alongside titanium coloring and other controlled surface-processing applications.
Why Does One Parameter Matrix Produce Many Colors?
Because the laser is changing the surface condition rather than applying colored material.
Changing scanning speed, pulse width, power, frequency, and hatch spacing changes the thermal cycle experienced by each location on the stainless-steel surface. This modifies oxide thickness and microstructure, which changes how visible light reflects from the surface.
That is why color-marking development often uses a parameter matrix rather than searching for one universal recipe.
A color chart created on one stainless-steel grade should not automatically be copied to another because alloy composition, surface roughness, polishing state, focus, lens, and laser source can all shift the color window.
Why Is MOPA Useful for Black Marking on Anodized Aluminum?
High-contrast black marking on anodized aluminum requires controlled modification of the oxide layer without damaging the underlying part or creating excessive surface removal.
MOPA pulse control gives the process engineer more freedom to tune the interaction between:
- Energy per pulse
- Peak power
- Pulse duration
- Pulse overlap
- Thermal accumulation
JPT’s current laser-marking application portfolio specifically includes anodized-aluminum black marking and describes the process as a controlled physical modification of the aluminum oxide surface.
The practical advantage is not simply that “MOPA makes a darker black.” The advantage is that the source provides a larger parameter space in which contrast, surface quality, speed, and substrate protection can be balanced.
Why Can MOPA Produce Better Results on Plastics?
Many plastics have a narrow thermal processing window. Too little energy creates a weak mark; too much energy can melt, foam, carbonize, warp, or burn the surface.
Pulse-width control allows the operator to change how strongly each pulse interacts with the polymer without relying only on power percentage or scan speed.
This can be valuable for:
- ABS housings
- PC electronics parts
- Automotive plastic components
- Cables and connectors
- Plastic medical components
- Thin polymer films
JPT’s technical guidance similarly emphasizes adjustable pulse width as a way to reduce heat accumulation for sensitive materials while maintaining sufficient energy for a readable mark.
However, polymer response varies significantly with additives, pigments, fillers, and color. Sample marking on the actual production resin remains necessary.
Can MOPA Fiber Lasers Still Perform Deep Engraving?
Yes. MOPA is not limited to low-heat or fine marking. Higher-power MOPA systems can also support material removal and deep engraving.
The process can be optimized through:
- Higher usable average power
- Appropriate pulse energy
- Lower marking speed
- Multiple passes
- Suitable hatch strategy
- Pulse-width selection
Current commercial MOPA platforms extend well beyond traditional 20–60 W marking sources. JPT, for example, currently offers MOPA architectures from lower-power marking sources into several-hundred-watt and even higher-power industrial processing platforms.
This demonstrates an important point:
MOPA describes the pulse-generation architecture, not a specific power class.
Does MOPA Always Mean Shorter Pulses?
No. The main advantage is not that a MOPA source always produces short pulses. It is that suitable MOPA architectures allow the pulse duration to be adjusted across a wider operating range.
The optimum pulse width depends on the material and process goal.
| Process goal | Pulse-width direction to evaluate | Main reason |
|---|---|---|
| Fine ablation | Shorter | Higher peak intensity and reduced heat diffusion |
| Heat-sensitive plastic marking | Shorter / controlled | Reduce unnecessary thermal damage |
| Stainless-steel color marking | Process-dependent | Control oxide formation and thermal cycle |
| Anodized aluminum black marking | Process-dependent | Control oxide-layer modification |
| Deep engraving | Moderate to longer depending on source | Balance pulse energy and material removal |
| Thin coating removal | Shorter | Remove coating while limiting substrate damage |
The table should be treated as a process-development direction rather than a fixed recipe.
How Do Pulse Width and Frequency Work Together?
Pulse width and frequency should never be optimized independently. Frequency controls how many pulses are emitted per second, while pulse width controls how long each pulse lasts.
A simplified pulse-energy relationship remains:
Pulse energy ≈ average power ÷ repetition frequency
Peak power then depends on pulse duration:
Peak power ≈ pulse energy ÷ pulse width
This means two settings with the same average power can produce very different material interactions.
For example:
- Lower frequency + short pulse can create high pulse energy and high peak power.
- Higher frequency + longer pulse can create dense pulse overlap and stronger thermal accumulation.
- Higher frequency + short pulse can create fine repeated interactions with lower energy per individual pulse.
The actual output behavior depends on the source’s permitted frequency/pulse-width operating map, so these relationships should be used to understand direction rather than predict exact output.
How Does MOPA Change the Laser Marking Parameter Strategy?
A conventional marking process may use four primary controls:
- Power
- Frequency
- Speed
- Hatch spacing
MOPA adds another major variable:
Pulse width
This increases flexibility, but it also increases the number of possible parameter combinations.
A practical MOPA process-development sequence is:
- Confirm focus and working distance.
- Define the required material effect.
- Select a reasonable frequency range.
- Select a pulse-width range appropriate to the application.
- Run a controlled power-speed matrix.
- Refine pulse width.
- Refine frequency and pulse overlap.
- Optimize hatch spacing and hatch direction.
- Evaluate multiple passes if needed.
- Record the complete recipe.
Changing all five parameters simultaneously makes it difficult to understand why a particular result improved or failed.
When Is a Conventional Q-Switched Fiber Laser the Better Choice?
A conventional Q-switched source remains an excellent option when the required marking process is well understood and does not benefit significantly from wide pulse-width control.
Typical examples include:
- Serial numbers on steel
- Simple metal logos
- QR codes
- Standard nameplates
- General metal engraving
- Routine industrial traceability
In these cases, a Q-switched source may provide:
- Lower system cost
- Simpler process development
- Fewer parameters to manage
- Proven industrial reliability
Buying MOPA only because it is described as “more advanced” can add cost and tuning complexity without improving the actual production result.
When Is MOPA Worth the Extra Cost?
MOPA becomes more valuable when the production line needs multiple distinct material interactions or when thermal control is part of the quality requirement.
It deserves serious consideration for:
- Stainless-steel color marking
- Titanium color marking
- Anodized-aluminum black marking
- Heat-sensitive plastics
- Fine coating removal
- Thin-film processing
- High-contrast precision marking
- Applications requiring adjustable peak power
- Mixed-material production lines
The commercial value comes from process flexibility, not from the MOPA label itself.
How Should an OEM Choose a MOPA Fiber Laser Source?
Do not select a MOPA source from average power alone. The useful specification is the combination of pulse-control capability and optical performance available inside the intended process window.
| Specification | Why it matters |
|---|---|
| Average output power | Defines total process-energy capacity |
| Maximum pulse energy | Influences material-removal capability |
| Pulse-width range | Defines thermal and peak-power flexibility |
| Frequency range | Controls pulse spacing and process speed |
| Allowed pulse-width/frequency combinations | Determines the real usable operating window |
| Beam quality | Affects focused spot and power density |
| Output fiber / connector | Must match the marking system optics |
| Cooling method | Affects integration and duty cycle |
| Control interface | Determines how pulse parameters are commanded |
When comparing fiber laser source options, ask for the real pulse-width and frequency operating map rather than simply confirming that the brochure uses the word “MOPA.”
Is Every MOPA Fiber Laser the Same?
No. Two MOPA sources can have the same average power and still offer very different pulse-width ranges, repetition-frequency ranges, pulse energies, peak powers, beam quality, and allowed operating combinations.
This is why it is misleading to compare MOPA sources using only:
20 W vs 20 W
or:
60 W vs 60 W.
The real comparison should include:
- Pulse width
- Maximum pulse energy
- Frequency range
- Peak-power capability
- Beam quality
- Pulse stability
- Parameter independence
- Application validation
A cheaper MOPA source with a restricted pulse map may offer less practical process flexibility than a source with the same average wattage but a wider stable operating range.
What Is the Most Important Rule When Using a MOPA Fiber Laser?
Do not treat pulse width as an isolated “advanced setting.” It changes the relationship between pulse energy, peak power, thermal input, and material response.
The correct workflow is:
Material → desired surface effect → pulse energy → pulse width → frequency → speed → hatch → validation.
That is the real advantage of MOPA technology.
It does not automatically make every marking process better. It gives the process engineer a wider energy-control window from which to build a better process.
Frequently Asked Questions About MOPA Fiber Lasers
Is a MOPA Fiber Laser Better Than a Normal Fiber Laser?
Not for every application. MOPA provides greater pulse-control flexibility, while a conventional Q-switched source may be more economical and simpler for routine metal marking and engraving.
Why Is MOPA Better for Color Marking?
Color marking requires precise control of thermal surface modification and oxide formation. Adjustable pulse width gives the process engineer an additional way to control that thermal cycle together with power, frequency, speed, and hatch spacing.
Can a MOPA Fiber Laser Deep Engrave Metal?
Yes. Suitable MOPA sources can perform deep engraving when average power, pulse energy, speed, hatch strategy, and number of passes are optimized for material removal.
Is Pulse Width More Important Than Laser Power?
Neither parameter is meaningful by itself. Average power determines available energy, while pulse width changes how that energy is delivered in time; both must be evaluated together with frequency, speed, beam quality, and the material.
