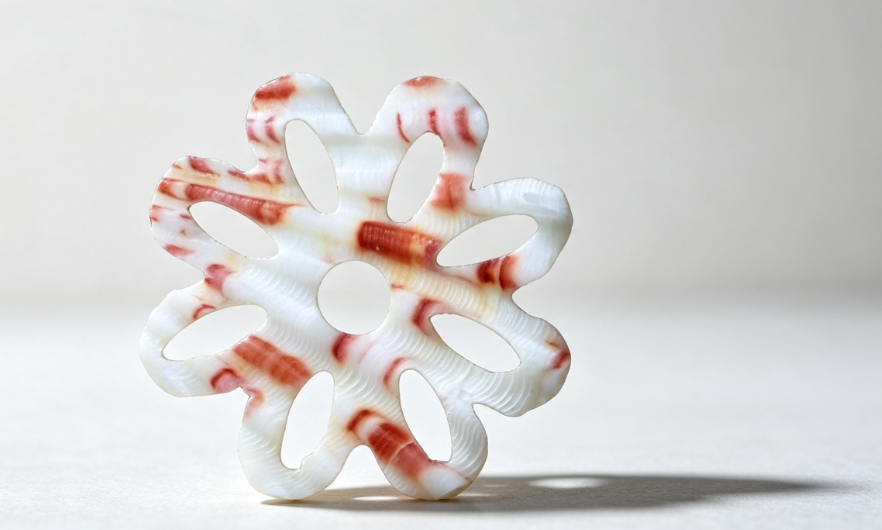

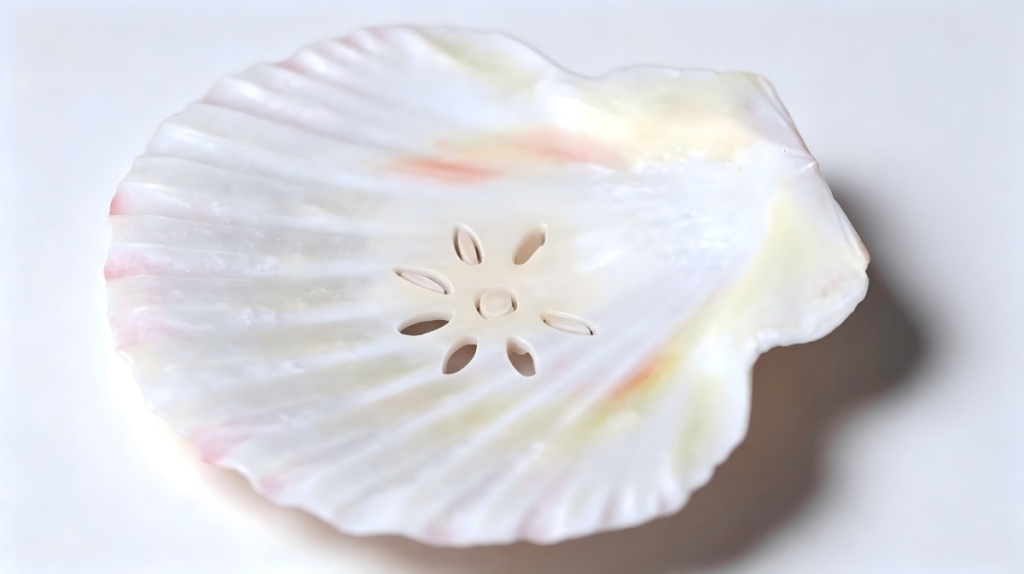

Precision Shell Cutting with UV Laser: Clean Edges, No Thermal Damage

Shells, as natural organic materials, have been widely used in jewelry, handicrafts, decorative products, and artistic creations due to their unique texture, color, and natural beauty. However, achieving high-quality shell processing has always been challenging, especially during cutting processes.

Traditional cutting methods often face several limitations:

• Irregular shapes and natural variations make it difficult to achieve precise cutting, resulting in low processing yield.
• Heat generated during conventional cutting may cause discoloration, such as yellowing or blackening, damaging the natural appearance and reducing product value.
• Uneven thickness and fragile structures can easily lead to cracks, chipping, and material breakage during machining.

To overcome these challenges, UV laser cutting technology provides an advanced solution for high-precision and high-quality shell processing.

Why UV Laser Is Ideal for Shell Cutting?

Ultraviolet lasers offer unique advantages for processing delicate organic materials. With shorter wavelength and higher photon energy, UV lasers achieve material removal mainly through a photochemical ablation process, minimizing thermal effects during processing.

This enables:

1. No Yellowing or Blackening — Preserving Natural Shell Beauty

Unlike traditional thermal cutting methods, UV laser processing significantly reduces the heat-affected zone. The material is removed through high-energy photon interaction rather than excessive heat accumulation.

As a result, the cut edges remain:

• Smooth and clean
• Free from carbonization marks
• Free from yellowing or blackening
• Maintaining the original color, texture, and natural appearance of the shell

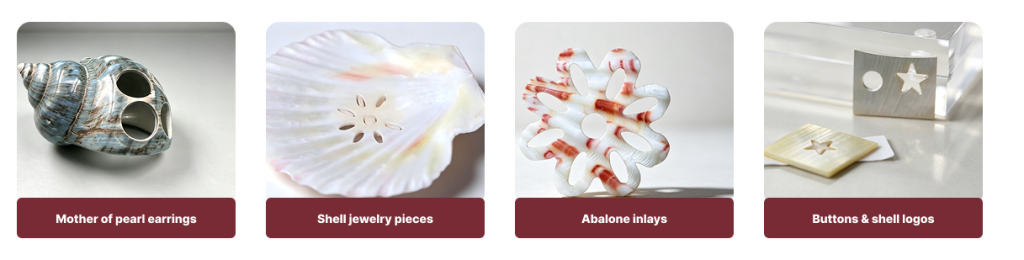

This makes UV laser technology particularly suitable for premium shell jewelry and artistic applications.

2. Micron-Level Precision for Complex Shapes

UV lasers can achieve extremely small focused spot sizes, enabling precise processing of delicate structures.

Whether cutting:

• Straight lines
• Curved contours
• Intricate patterns
• Customized shapes

UV laser systems can easily handle complex designs while expanding creative possibilities for designers and manufacturers.

3. High Processing Efficiency and Consistent Quality

With fast laser processing speed and excellent repeatability, UV laser cutting can significantly improve production efficiency while maintaining consistent quality.

It is an ideal solution for manufacturers requiring:

• High precision
• High yield rate
• Stable mass production

Key Features of Our UV Solid-State Laser System

1. Excellent Beam Quality and Stable Output

With superior beam quality (M² < 1.2) and stable performance, the laser system provides up to 3W UV laser output, ensuring reliable cutting quality and processing efficiency.

2. Small Spot Size and Minimal Heat-Affected Zone

Featuring:

• Pulse width: <15 ns @30kHz
• High peak power output
• Fine laser focusing capability

The system achieves a minimal heat-affected zone, enabling precise micro-cutting for delicate materials and high-value applications.

3. Compact Design and Easy Integration

The UV laser features an integrated and compact structure with lightweight design, making installation and maintenance easier.

It can be seamlessly integrated with:

• Automated platforms
• Robotic systems
• Precision motion stages

to meet different industrial processing requirements.

4. Intelligent Control and Simple Operation

Equipped with advanced digital power control technology, the laser system supports computer communication and external control via RS232 interface, allowing users to optimize processing efficiency and achieve intelligent operation.

Beyond Shell Cutting: UV Laser Enables Advanced Precision Manufacturing

With continuous innovation in laser technology and intelligent control systems, our UV laser solutions are helping industries achieve higher precision, better quality, and more creative manufacturing possibilities.

From shell cutting to other precision applications, UV laser technology provides a cleaner, more efficient, and more reliable processing method for modern manufacturing and artistic creation.
